(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

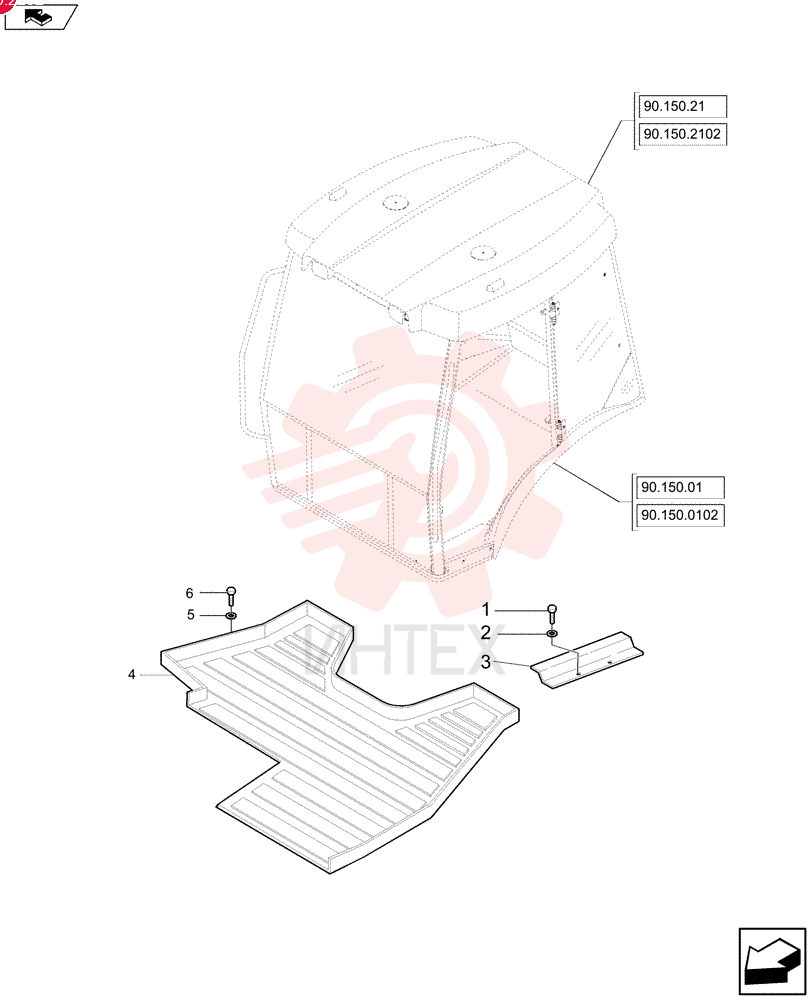

HEX SOC SCREW,FLAT, M6 x 1 x 25mm, Cl 8.8 87698790 (2)

HEX SOC SCREW,FLAT, M6 x 1 x 25mm, Cl 8.8 87698790 (2)

HEX SOC SCREW,FLAT, M6 x 1 x 25mm, Cl 8.8 87698790 (2)

1 87698790

  • 87698790 - HEX SOC SCREW
  • FLAT
  • M6 x 1 x 25mm
  • Cl 8.8

2 12640601

  • 12640601 - WASHER
  • 6.15mm ID x 25mm OD x 2mm Thk

3 85805591

  • 85805591 - DOOR SILL MOULDING

4 85804866

  • 85804866 - FLOOR MAT

5 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

6 13311217

  • 13311217 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 20mm
  • Cl 5.8
  • Full Thd

7 10902621

  • 10902621 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
