(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

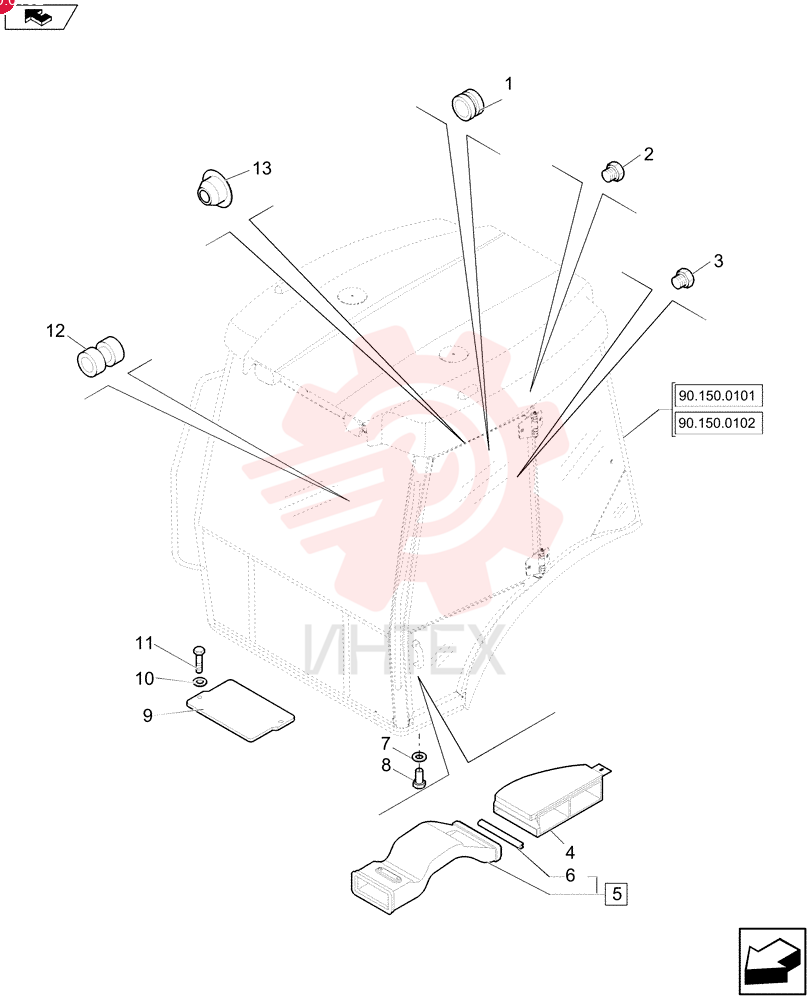

GROMMET,14mm ID x 24.5mm OD x 14.5mm Thk 85801941 (1)

GROMMET,14mm ID x 24.5mm OD x 14.5mm Thk 85801941 (1)

GROMMET,14mm ID x 24.5mm OD x 14.5mm Thk 85801941 (1)

1 85801941

  • 85801941 - GROMMET
  • 14mm ID x 24.5mm OD x 14.5mm Thk

2 83994150

  • 83994150 - PLUG
  • 4.5-5.7mm OD

3 79111978

  • 79111978 - PLUG
  • 23mm OD

4 87319754

  • 87319754 - AIR DUCT

5 87408277

  • 87408277 - AIR DUCT

6 85812021

  • 85812021 - SEAL
  • 555mm L x 25mm W x 13mm Thk

7 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

8 10902224

  • 10902224 - SCREW
  • Hex
  • M6 x 16mm
  • Cl 8.8
  • Full Thd

9 85801968

  • 85801968 - PLATE

10 11198074

  • 11198074 - BELLEVILLE WASHER
  • M8 Bolt Size x 15mm OD x 1.8mm Thk

11 16043424

  • 16043424 - SCREW
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

12 10398580

  • 10398580 - GROMMET
  • 22mm ID x 30mm GRV ø x 38mm OD x 13mm Thk

13 82003283

  • 82003283 - PLUG
  • 10.5mm OD
