(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

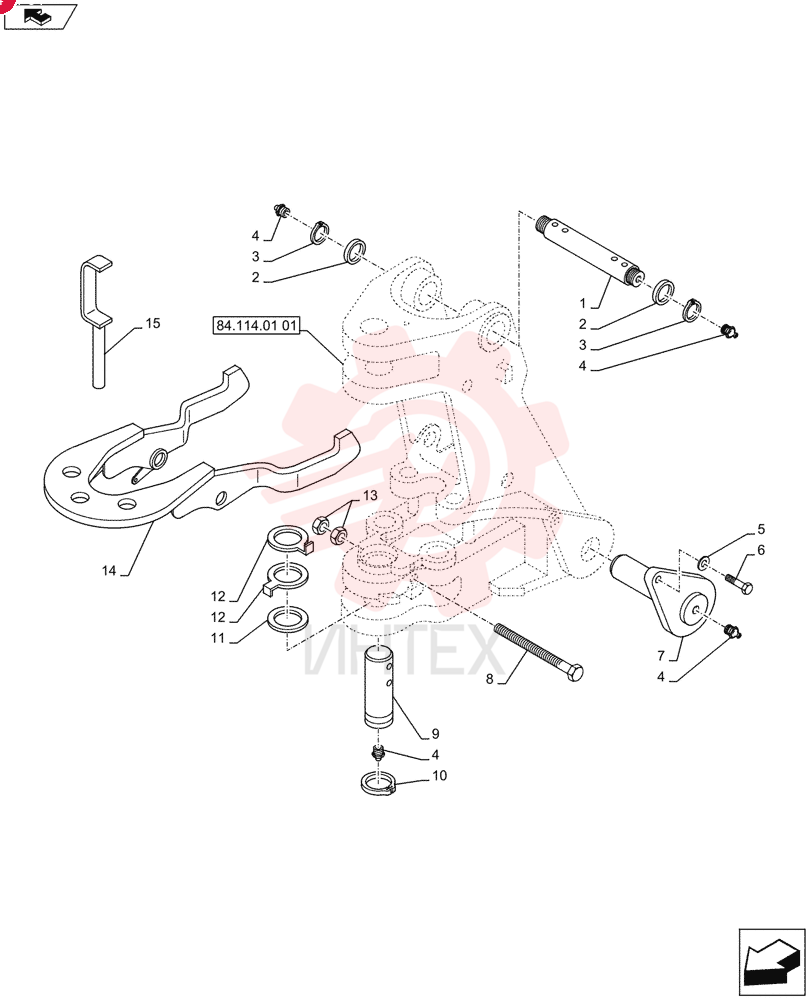

PIN,50mm OD x 302mm L 85801026 (1)

PIN,50mm OD x 302mm L 85801026 (1)

PIN,50mm OD x 302mm L 85801026 (1)

1 85801026

  • 85801026 - PIN
  • 50mm OD x 302mm L

2 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L

3 83911019

  • 83911019 - SNAP RING
  • M45 x 2.88mm Thk
  • Int

4 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

5 85802396

  • 85802396 - WASHER
  • 16.76mm ID x 38.1mm OD x 6.35mm Thk

6 85802397

  • 85802397 - BOLT
  • Hex
  • M16 x 40mm
  • Cl 12.9

7 85802872

  • 85802872 - PIN
  • 55mm OD x 122mm L

8 15201934

  • 15201934 - BOLT
  • Hex
  • M14 x 2 x 170mm
  • Cl 10.9

9 85801079

  • 85801079 - PIN
  • 70mm OD x 163mm L

10 85803198

  • 85803198 - RING
  • M7 x 2.5mm Thk
  • Ext

11 8274447

  • 8274447 - SHIM
  • 71mm ID x 130mm OD x 1mm Thk

12 85801191

  • 85801191 - SPACER
  • 71mm ID x 8mm Thk

13 10717421

  • 10717421 - THIN NUT
  • Thin
  • M14 x 2
  • Cl 05

14 87480317

  • 87480317 - LATCH HOOK

15 87610829

  • 87610829 - PIN
  • 35mm OD x 166mm L
