New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

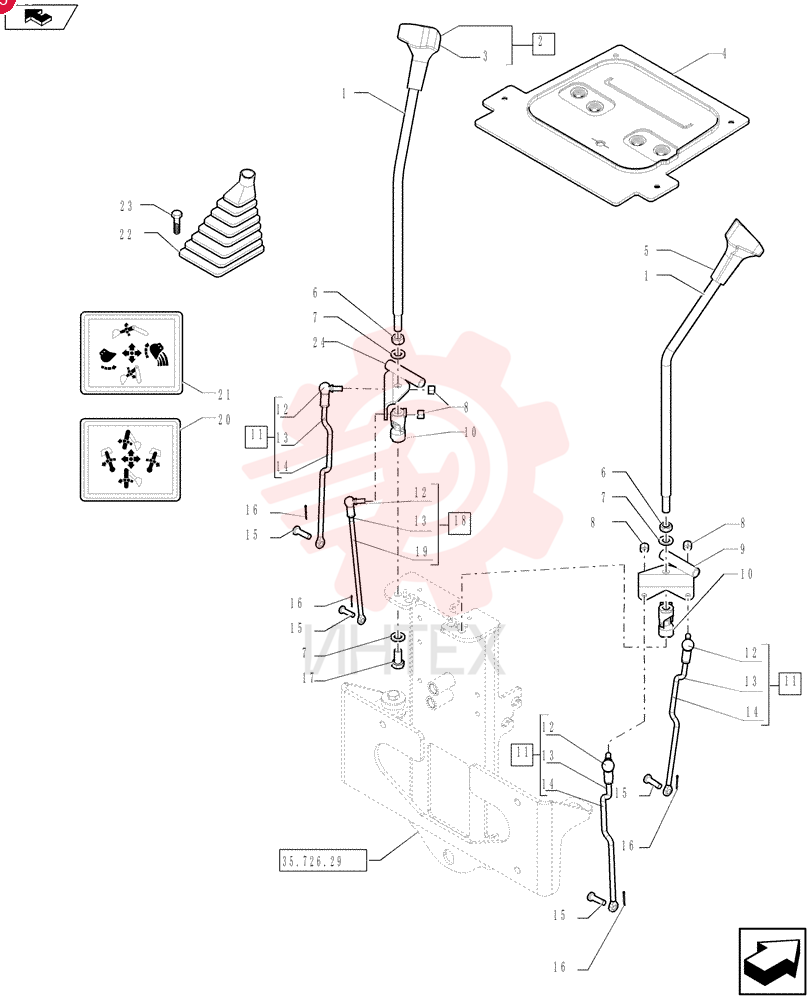

LEVER 85801488 (1)

LEVER 85801488 (1)

LEVER 85801488 (1)

1 85801488

  • 85801488 - LEVER

2 85802682

  • 85802682 - KNOB

3 87448432

  • 87448432 - SWITCH

4 84170751

  • 84170751 - BOOT

5 85801502

  • 85801502 - KNOB

6 16101511

  • 16101511 - NUT
  • M12 x 1.25
  • Cl 8

7 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

8 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

9 85803124

  • 85803124 - BRACKET

10 85801518

  • 85801518 - UNIVERSAL JOINT
  • M12x1.25 Female x2
  • 56mm L

11 84161603

  • 84161603 - TIE-ROD
  • M8 x 273mm L

12 85804375

  • 85804375 - BALL JOINT
  • M8

13 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

14 84160724

  • 84160724 - ROD
  • 8mm Rod
  • 283mm Stroke

15 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

16 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

17 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

18 84161604

  • 84161604 - TIE-ROD
  • M8 x 258.6mm L

19 84160725

  • 84160725 - ROD
  • 8mm Rod
  • 268.6mm Stroke

20 85804345

  • 85804345 - DECAL

21 85804344

  • 85804344 - DECAL

22 85802843

  • 85802843 - BOOT

23 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

24 85803107

  • 85803107 - BRACKET
