(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

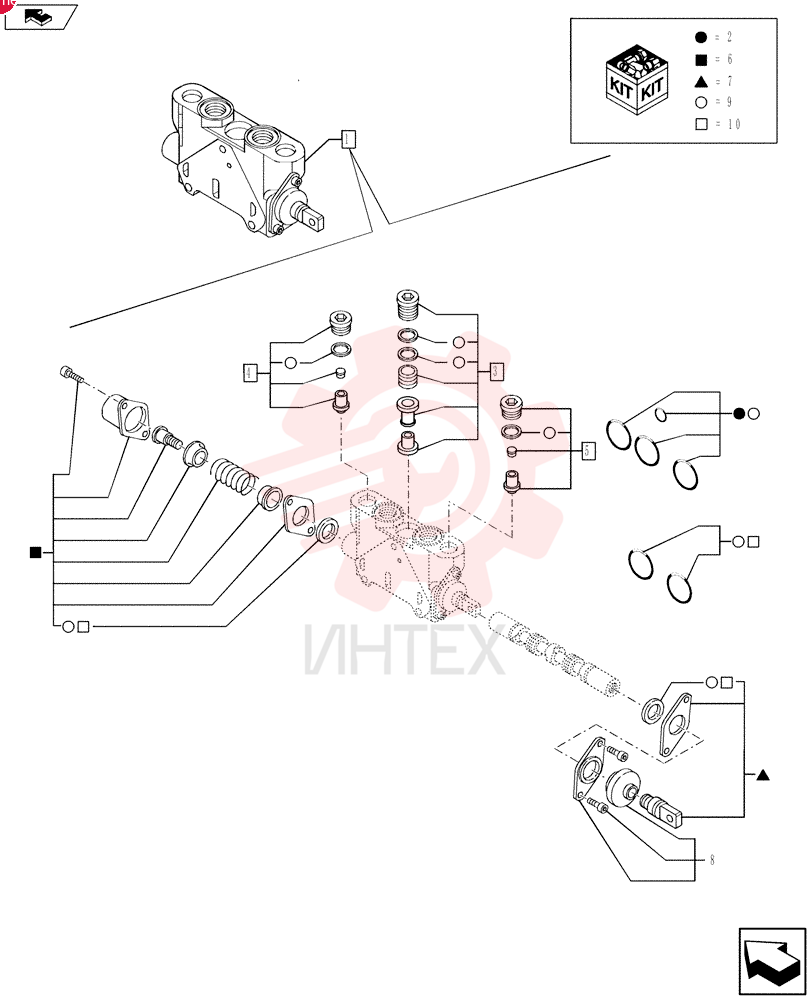

HYD VALVE SECTION 84232162

HYD VALVE SECTION 84232162

HYD VALVE SECTION 84232162

1 84232162

  • 84232162 - HYD VALVE SECTION

2 84232746

  • 84232746 - PLUG

3 85820130

  • 85820130 - BOOT

4 85825473

  • 85825473 - SEAL KIT

5 87617657

  • 87617657 - O-RING KIT

6 85825248

  • 85825248 - SEAL KIT

7 87718997

  • 87718997 - VALVE PRESSURE RELIE
  • 220Bar
  • 3200Psi
  • Assy

8 84232114

  • 84232114 - VALVE

9 85824279

  • 85824279 - KIT

10 85824278

  • 85824278 - KIT
