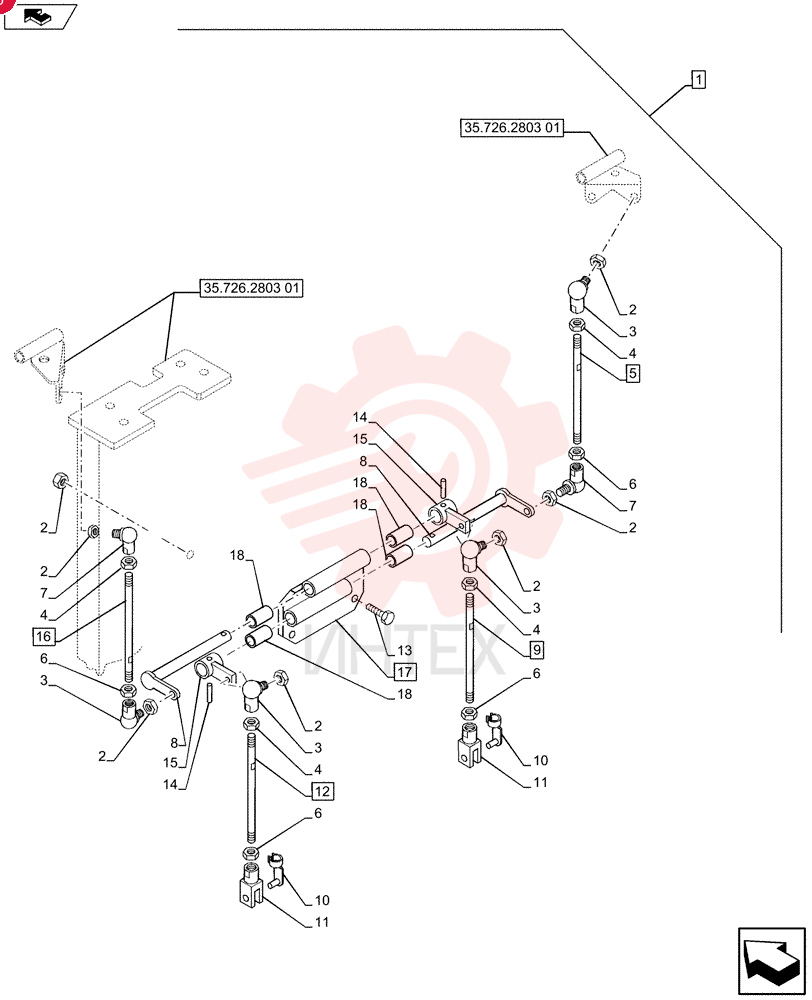

ISO 2 LEVER BACKHOE 741354019 (2)

ISO 2 LEVER BACKHOE 741354019 (2)

ISO 2 LEVER BACKHOE 741354019 (2)

1 741354019

  • 741354019 - ISO 2 LEVER BACKHOE

2 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

3 85804375

  • 85804375 - BALL JOINT
  • M8

4 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

5 85803477

  • 85803477 - TIE-ROD
  • M8 x 213.5mm L

6 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

7 85804376

  • 85804376 - BALL JOINT
  • M8

8 85803489

  • 85803489 - PIN
  • 16mm OD x 166.5mm L

9 85805867

  • 85805867 - TIE-ROD

10 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

11 11991971

  • 11991971 - CLEVIS
  • M8

12 85805806

  • 85805806 - TIE-ROD

13 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

14 13940370

  • 13940370 - ROLL PIN
  • M5 x 26
  • Coiled

15 85805866

  • 85805866 - IDLER LEVER

16 85803474

  • 85803474 - TIE-ROD
  • M8 x 179mm L

17 85803493

  • 85803493 - SUPPORT

18 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L
