(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

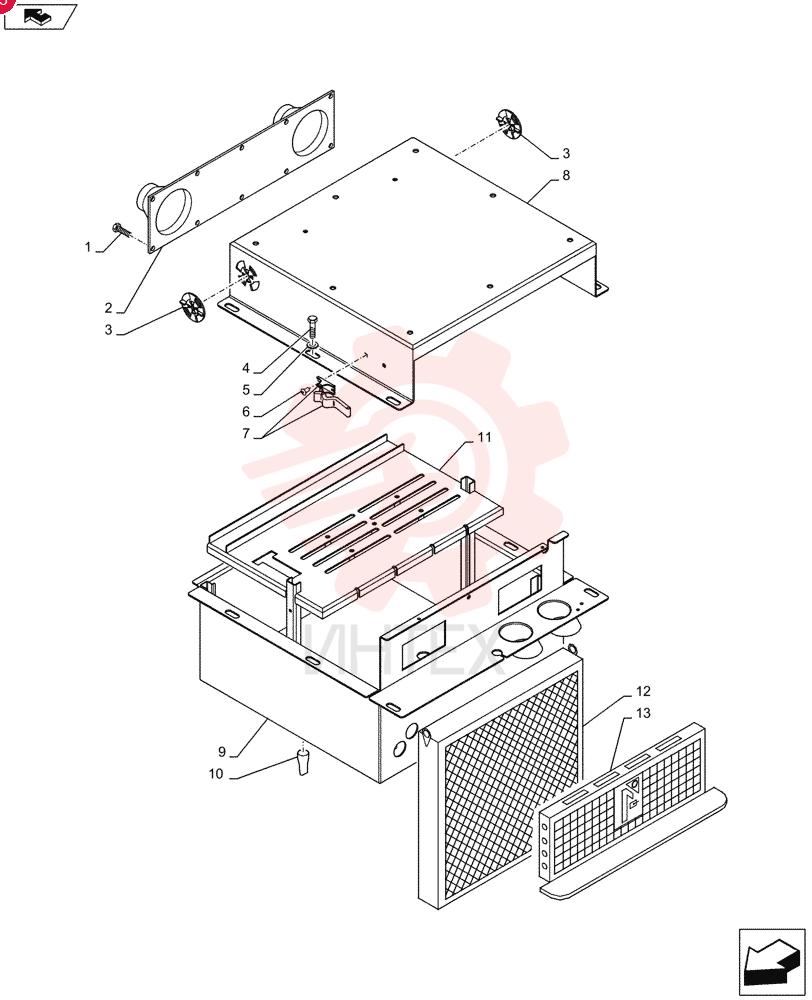

SCREW 85819184 (1)

SCREW 85819184 (1)

SCREW 85819184 (1)

1 85819184

  • 85819184 - SCREW

2 87316439

  • 87316439 - AIR DUCT

3 87618259

  • 87618259 - BAFFLE

4 16043624

  • 16043624 - SCREW
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

5 11193974

  • 11193974 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

6 87358141

  • 87358141 - RIVET

7 87358140

  • 87358140 - HANDLE GRIP

8 87618272

  • 87618272 - COVER

9 87314323

  • 87314323 - HOUSING

10 87315029

  • 87315029 - DUST VALVE

11 87314355

  • 87314355 - BOTTOM

12 87566972

  • 87566972 - CAB FILTER

13 87314330

  • 87314330 - GRILLE
