(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

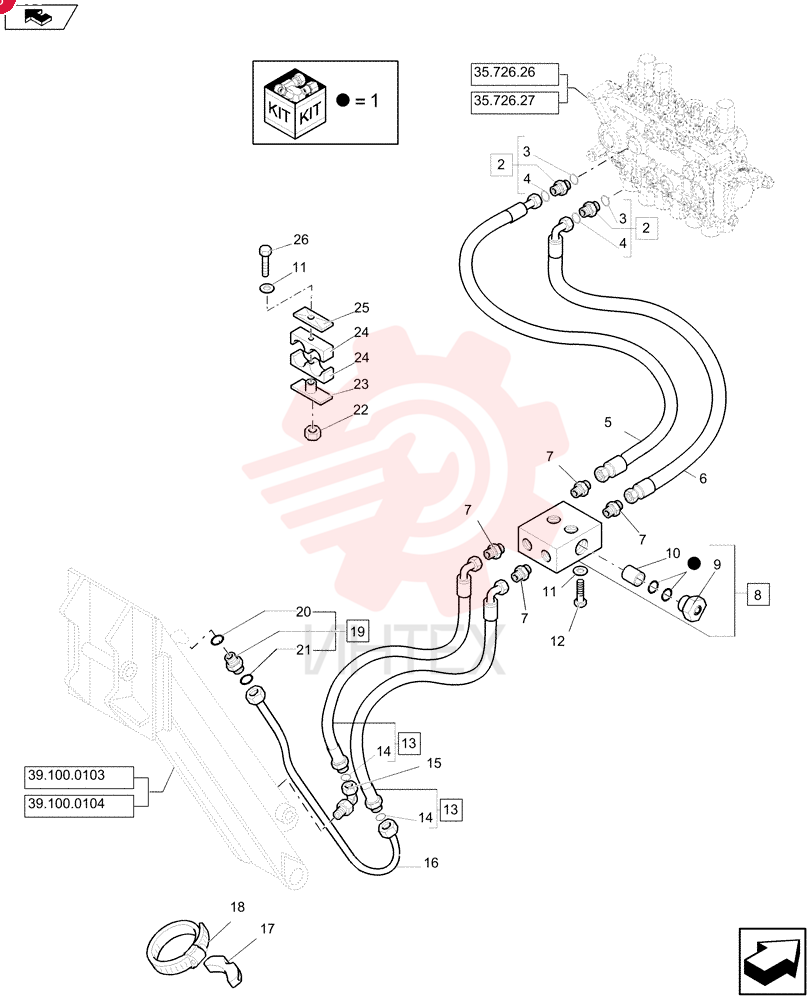

SEAL 85821126 (2)

SEAL 85821126 (2)

SEAL 85821126 (2)

1 85821126

  • 85821126 - SEAL

2 9992305

  • 9992305 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 3/4" - 16 ORB

3 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

4 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

5 84159447

  • 84159447 - HOSE
  • 9.53mm ID x 685mm L
  • SAE 100R16

6 84159450

  • 84159450 - HOSE
  • 9.53mm ID x 825mm L
  • SAE 100R16

7 83985067

  • 83985067 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 9/16" - 18 ORB

8 85802820

  • 85802820 - CHECK VALVE

9 85820160

  • 85820160 - HYDRAULIC VALVE

10 85820159

  • 85820159 - PLUNGER

11 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

12 16044421

  • 16044421 - SCREW
  • Hex
  • M8 x 60mm
  • Cl 8.8

13 85807874

  • 85807874 - FLEXIBLE HOSE
  • 9.53mm ID x 1676mm L

14 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

15 85802965

  • 85802965 - ELBOW
  • 3/4-16 UN x 13/16-16 UN

16 85802620

  • 85802620 - HYD TUBE

17 87303912

  • 87303912 - BLOCK

18 85803008

  • 85803008 - HOSE CLAMP
  • 110mm - 130mm

19 83963374

  • 83963374 - FITTING
  • 13/16"-16 ORFS x 3/4"-16 ORB

20 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

21 80128825

  • 80128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

22 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

23 87390534

  • 87390534 - PLATE

24 87390511

  • 87390511 - CLAMP
  • 16mm ID

25 87390514

  • 87390514 - PLATE

26 15213621

  • 15213621 - SCREW
  • Hex
  • M8 x 1.25 x 55mm
  • Cl 8.8
  • Full Thd
