New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

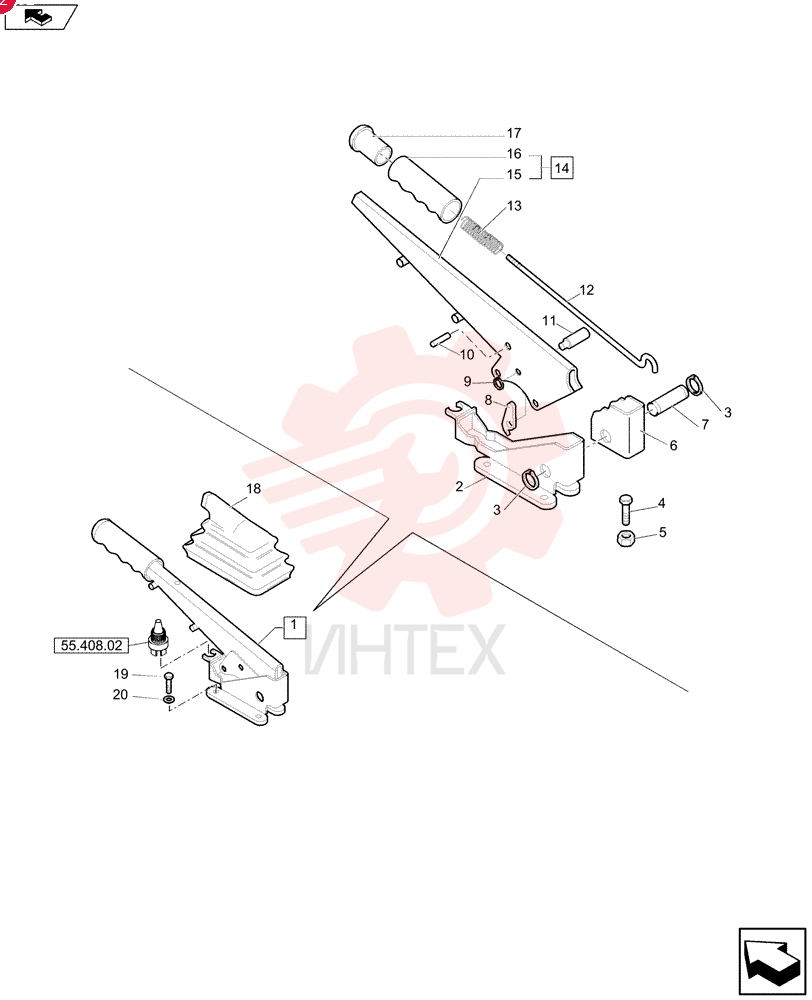

LEVER 85827832

LEVER 85827832

LEVER 85827832

1 85827832

  • 85827832 - LEVER

2 85805441

  • 85805441 - SUPPORT

3 13400776

  • 13400776 - LOCKING RING

4 13272319

  • 13272319 - SCREW
  • Pozidriv Pan Hd
  • M4 x 18mm
  • Cl 5.8
  • Full Thd

5 10794011

  • 10794011 - NUT
  • M4
  • Cl 8

6 5110153

  • 5110153 - RATCHET

7 4988275

  • 4988275 - PIN
  • 14mm OD x 40mm L

8 5110155

  • 5110155 - LEVER

9 86507012

  • 86507012 - SNAP RING
  • M6
  • Ext

10 4985127

  • 4985127 - RIVET
  • 23mm OD x 4mm D

11 5131437

  • 5131437 - PIN
  • 5.7mm OD x 6mm L

12 85827833

  • 85827833 - DIPSTICK

13 5105729

  • 5105729 - SPRING
  • 14mm OD x 166.5mm L

14 85827834

  • 85827834 - LEVER

15 85805440

  • 85805440 - LEVER

16 86021837

  • 86021837 - HANDLE GRIP

17 4985122

  • 4985122 - BUTTON
  • 5mm ID x 10mm OD x 30mm L

18 5106733

  • 5106733 - BOOT

19 14306424

  • 14306424 - HEX SOC SCREW
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

20 11197874

  • 11197874 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 2.2mm Thk
