(B115 TIER 3) - LOADER BACKHOE (2/07-)
/

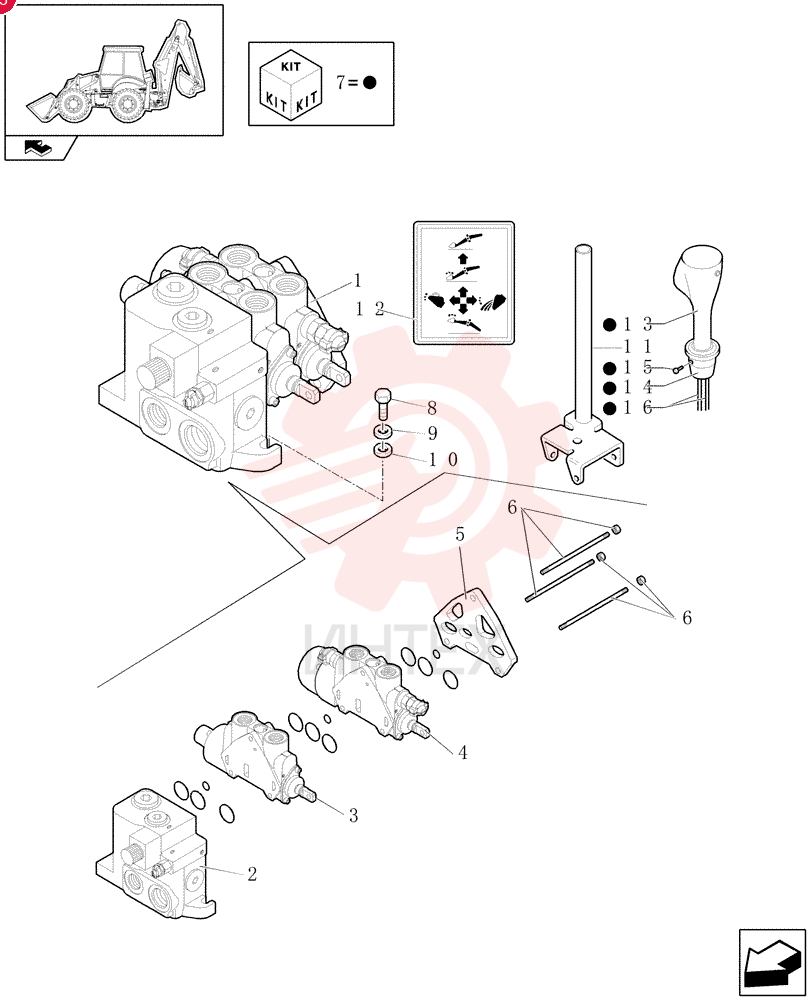

CONTROL VALVE 85825188

CONTROL VALVE 85825188

CONTROL VALVE 85825188

1 85825188

  • 85825188 - CONTROL VALVE

2 85825468

  • 85825468 - HYD VALVE SECTION

3 87558567

  • 87558567 - CONTROL VALVE

4 85825469

  • 85825469 - HYD VALVE SECTION

5 85826924

  • 85826924 - SECTOR

6 85825475

  • 85825475 - THREADED TIE-ROD
  • M10 x 145mm L

7 85825473

  • 85825473 - SEAL KIT

8 87311102

  • 87311102 - JOYSTICK

9 87311103

  • 87311103 - JOYSTICK

10 11234721

  • 11234721 - BOLT
  • Hex
  • M10 x 1.25 x 45
  • 8.8

11 13578621

  • 13578621 - WASHER
  • 10.2mm ID x 30mm OD x 2mm Thk

12 11190679

  • 11190679 - BELLEVILLE WASHER
  • M10 Bolt Size x 27mm OD x 2.5mm Thk

13 87646646

  • 87646646 - LEVER

14 85804346

  • 85804346 - DECAL

15 87311302

  • 87311302 - HANDLE GRIP

16 87311306

  • 87311306 - HANDLE GRIP

17 87311303

  • 87311303 - HUB

18 13789621

  • 13789621 - SET SCREW
  • Hex Soc
  • M8 x 10mm
  • Flat Pt

19 87311836

  • 87311836 - WIRE HARNESS

20 87311838

  • 87311838 - WIRE HARNESS
