New Holland Construction
/
(B115 TIER 3) - LOADER BACKHOE (2/07-)
/

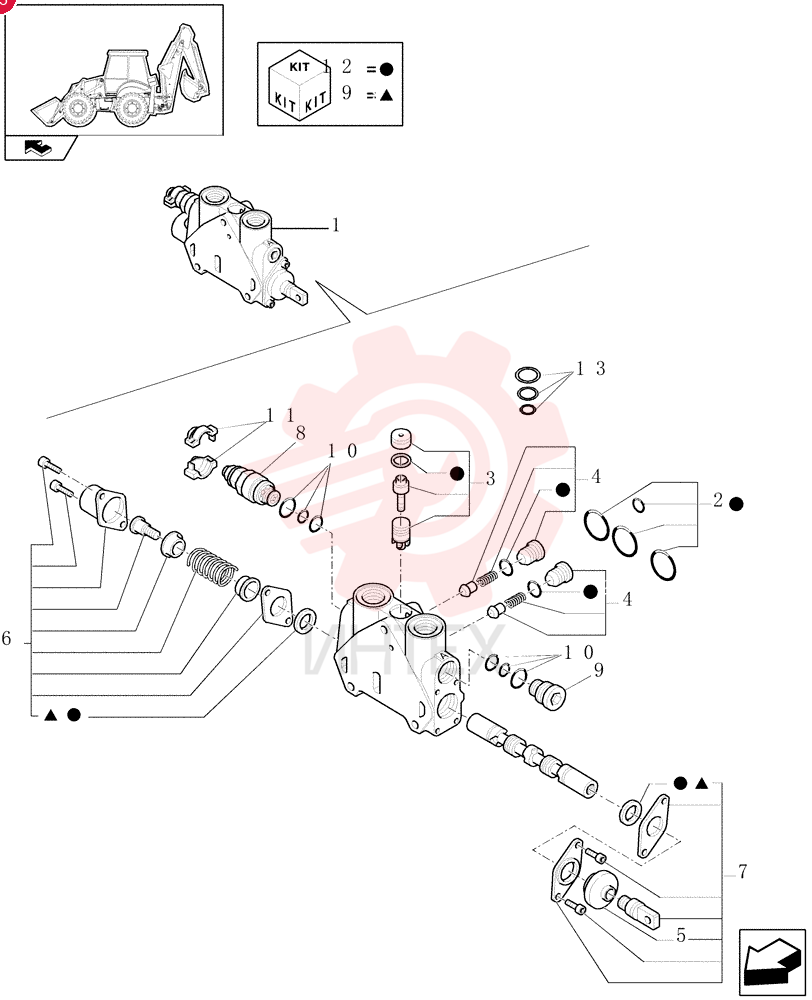

HYD VALVE SECTION 85826248

HYD VALVE SECTION 85826248

HYD VALVE SECTION 85826248

1 85826248

  • 85826248 - HYD VALVE SECTION

2 85819148

  • 85819148 - SEAL KIT
  • Between Control Valve Sections

3 85819378

  • 85819378 - KIT

4 85811938

  • 85811938 - KIT
  • Check Valve

5 85820130

  • 85820130 - BOOT

6 85824279

  • 85824279 - KIT

7 87735363

  • 87735363 - REPAIR KIT

8 85812116

  • 85812116 - VALVE PRESSURE RELIE

9 85824283

  • 85824283 - SEAL KIT

10 85811933

  • 85811933 - SEAL KIT
  • Secondary Valve

11 85811934

  • 85811934 - KIT
  • Half
  • Orange

12 85824281

  • 85824281 - SEAL KIT
  • Control Valve Section
  • Complete

13 85819040

  • 85819040 - SEAL KIT
