(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

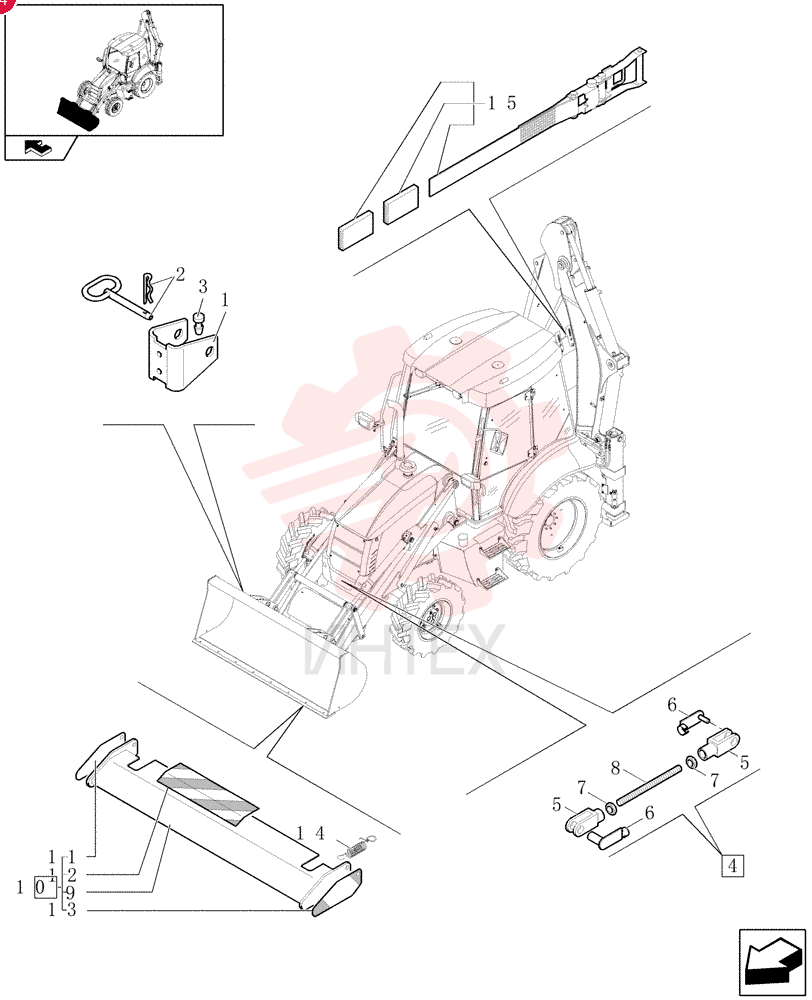

STOP 85805610 (2)

STOP 85805610 (2)

STOP 85805610 (2)

1 85805610

  • 85805610 - STOP

2 86507337

  • 86507337 - HITCH PIN
  • 12.7mm OD x 133.32mm L

3 14565080

  • 14565080 - BUTTON

4 87370045

  • 87370045 - TIE-ROD
  • 300mm L

5 10008571

  • 10008571 - YOKE
  • M10 x 30mm L

6 85805608

  • 85805608 - YOKE
  • 16mm OD x 62mm L

7 12163311

  • 12163311 - NUT
  • M16
  • Cl 8

8 87370072

  • 87370072 - TIE-ROD
  • M16 x 210mm L

9 85805612

  • 85805612 - PROTECTION

10 85803518

  • 85803518 - GUARD

11 85805611

  • 85805611 - SHIELD

12 85803534

  • 85803534 - GUARD

13 85803538

  • 85803538 - STRIP-GASKET

14 85805614

  • 85805614 - DECAL

15 85803537

  • 85803537 - STRIP-GASKET

16 85803539

  • 85803539 - DECAL

17 85803541

  • 85803541 - SPRING
  • 20mm OD x 105mm L

18 87361089

  • 87361089 - BLOCK
