(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

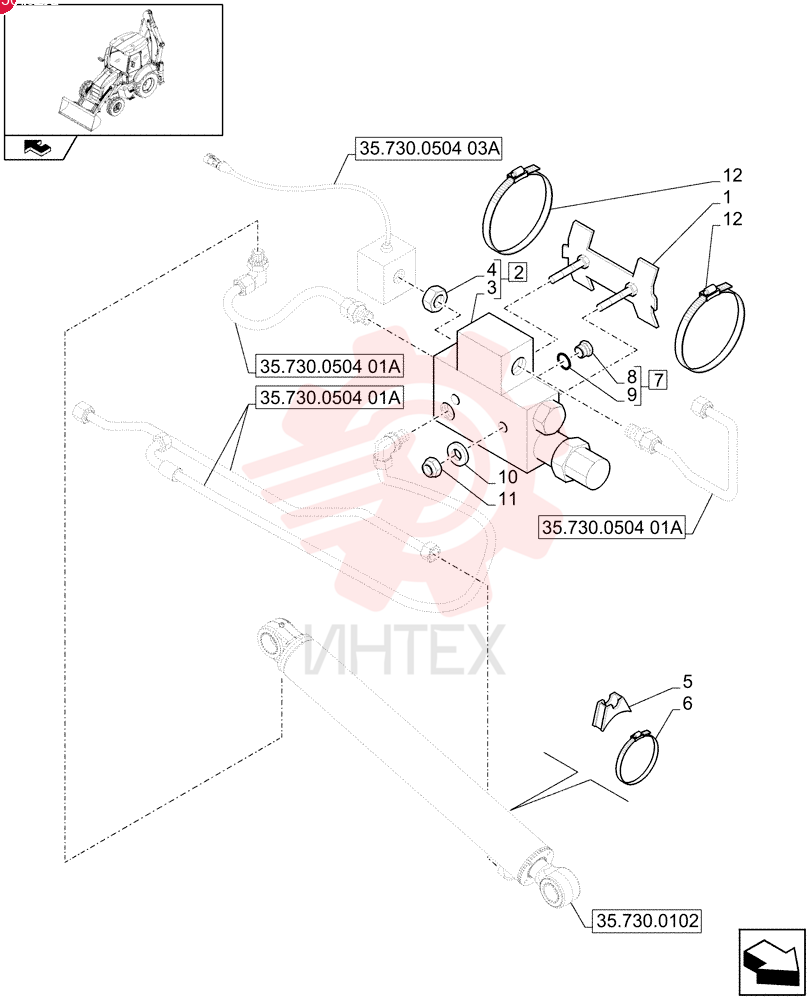

SUPPORT 85805221

SUPPORT 85805221

SUPPORT 85805221

1 85805221

  • 85805221 - SUPPORT

2 85805223

  • 85805223 - HYDRAULIC VALVE

3 NSS

  • NSS - NOT SOLD SEPARAT

4 9970384

  • 9970384 - RING NUT

5 83901828

  • 83901828 - SPACER
  • R8.4mm
  • R45mm

6 85803008

  • 85803008 - HOSE CLAMP
  • 110mm - 130mm

7 85802805

  • 85802805 - PLUG
  • 9/16" - 18

8 NSS

  • NSS - NOT SOLD SEPARAT

9 89825770

  • 89825770 - O-RING
  • 0.07" Thk x 0.301" ID
  • -11
  • Cl 6
  • 90 Duro

10 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

11 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

12 381144

  • 381144 - HOSE CLAMP
  • 84.1mm - 107.9mm
  • Worm Gear
