(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

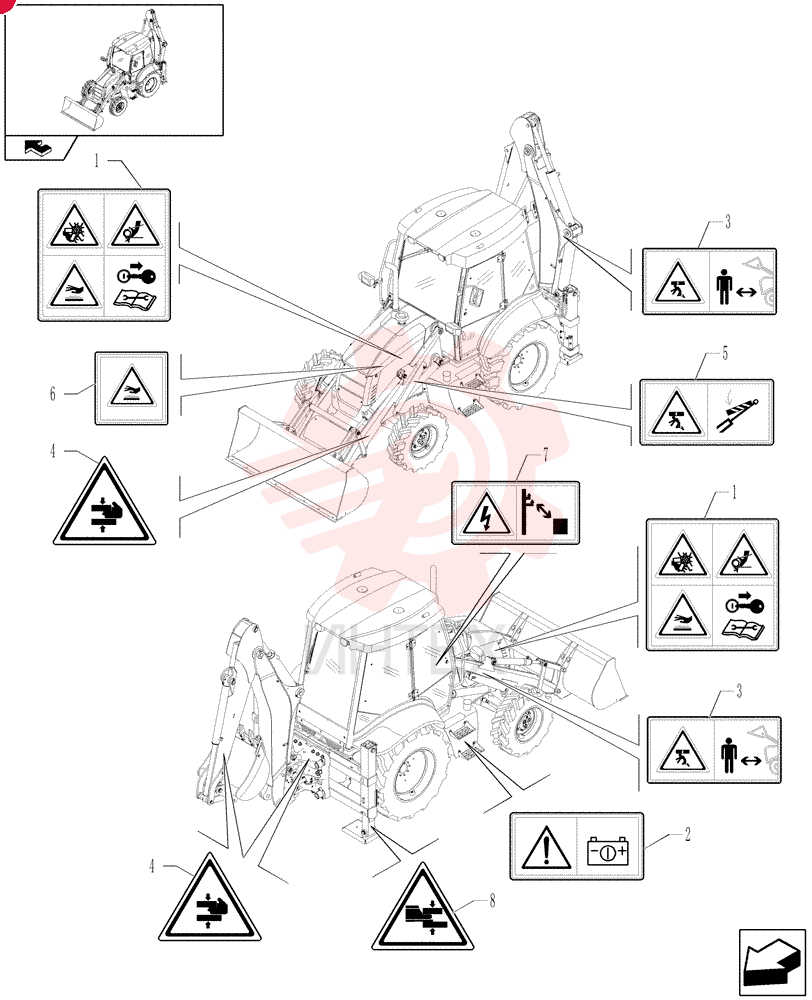

WARNING DECAL 85804324

WARNING DECAL 85804324

WARNING DECAL 85804324

1 85804324

  • 85804324 - WARNING DECAL

2 85804330

  • 85804330 - WARNING DECAL

3 85804331

  • 85804331 - DECAL

4 85804329

  • 85804329 - DECAL

5 85804325

  • 85804325 - DECAL

6 85804326

  • 85804326 - DECAL

7 85804327

  • 85804327 - DECAL

8 85804332

  • 85804332 - DECAL

9 87494551

  • 87494551 - DECAL
