New Holland Construction
/
(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

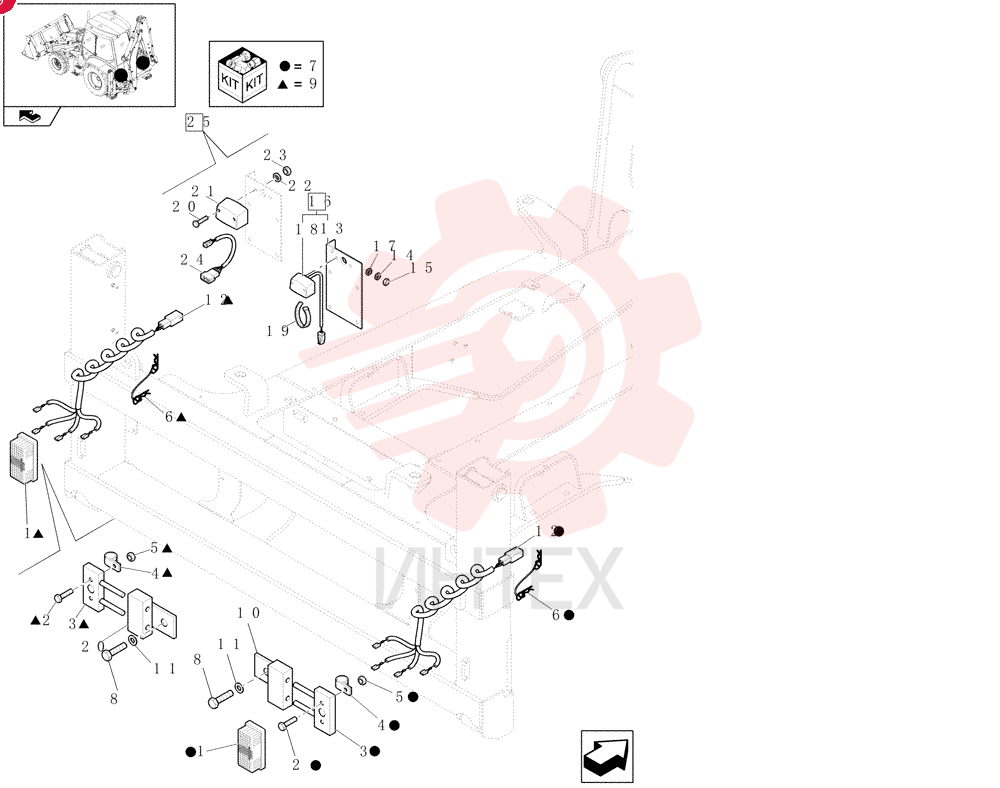

TAIL LAMP,12V, 21W, Amber/Red

TAIL LAMP,12V, 21W, Amber/Red

TAIL LAMP,12V, 21W, Amber/Red

1 85803854

  • 85803854 - TAIL LAMP
  • 12V
  • 21W
  • Amber/Red

2 10902321

  • 10902321 - SCREW
  • Hex
  • M6 x 18mm
  • Cl 8.8
  • Full Thd

3 87302820

  • 87302820 - BRACKET

4 10441190

  • 10441190 - CLAMP
  • 8mm
  • Coat
  • 7mm Bolt Hole
  • P Type

5 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

6 87303306

  • 87303306 - CLIP
  • 230mm L

7 87303309

  • 87303309 - TAIL LAMP
  • 12V
  • 21W
  • Amber/Red

8 15980321

  • 15980321 - BOLT
  • Hex
  • M16 x 1.5 x 25mm
  • Cl 8.8
  • Full Thd

9 87318551

  • 87318551 - TAIL LAMP
  • 12V
  • 21W
  • Amber/Red

10 87302756

  • 87302756 - SUPPORT

11 11191579

  • 11191579 - BELLEVILLE WASHER
  • M16 Bolt Size x 34mm OD x 3.6mm Thk

12 87303310

  • 87303310 - WIRE HARNESS

13 85803296

  • 85803296 - SUPPORT

14 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

15 16100811

  • 16100811 - NUT
  • Hex
  • M8
  • 6.80mm
  • Cl 8
  • ZND

16 87387257

  • 87387257 - NUMBER PLATE LAMP

17 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

18 87387258

  • 87387258 - NUMBER PLATE LAMP

19 85803332

  • 85803332 - CABLE TIE
  • M4.8 x 180

20 10977821

  • 10977821 - BOLT
  • M5 x 19.65mm OAL
  • Cl 8.8

21 85803533

  • 85803533 - NUMBER PLATE LAMP
  • 12V

22 12637811

  • 12637811 - WASHER

23 86639241

  • 86639241 - NUT
  • Prev Torque
  • M5 x 0.8
  • Cl 8

24 87318560

  • 87318560 - WIRE HARNESS

25 85803522

  • 85803522 -
