(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

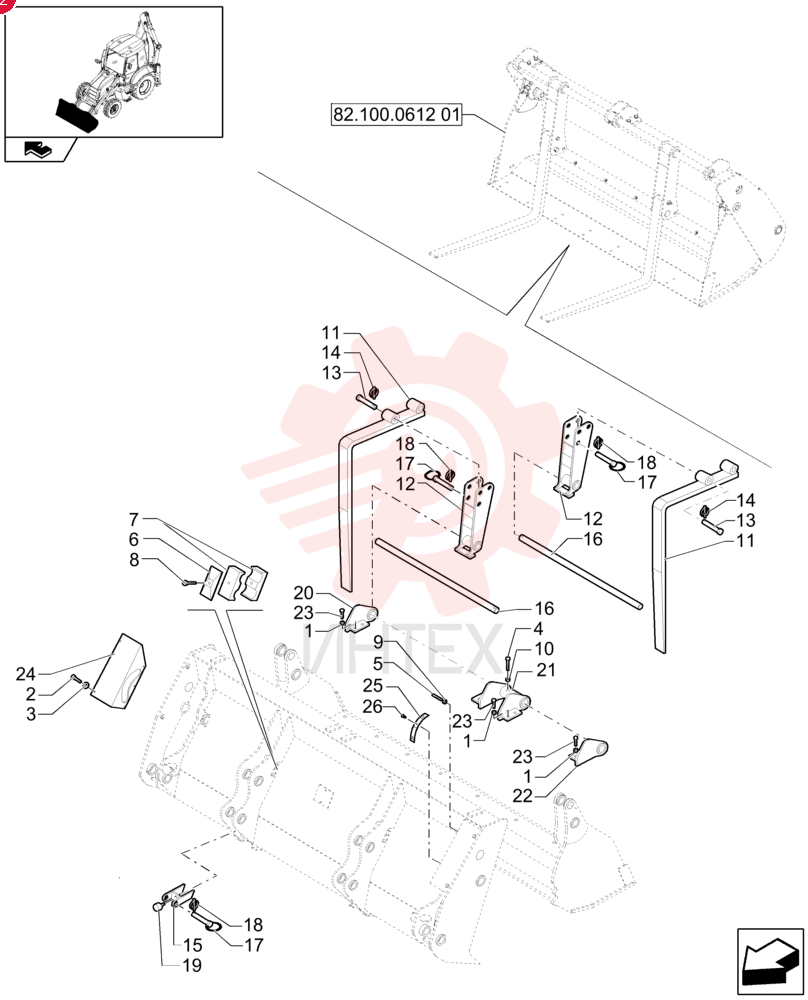

WASHER,16mm ID

WASHER,16mm ID

WASHER,16mm ID

1 87395486

  • 87395486 - WASHER
  • 16mm ID

2 85820011

  • 85820011 - SCREW
  • M8 x 16mm

3 85820012

  • 85820012 - SEALING WASHER
  • 8.5mm ID x 24mm L ZND

4 85820018

  • 85820018 - SCREW
  • M10 x 90mm

5 87312331

  • 87312331 - SCREW
  • M8 x 120mm

6 85820026

  • 85820026 - PLATE

7 85820027

  • 85820027 - CLAMP

8 85820030

  • 85820030 - SCREW
  • M8 x 45mm

9 85820031

  • 85820031 - NUT
  • Hex
  • M8

10 85820035

  • 85820035 - LOCK NUT
  • Hex
  • M10 x 1.5mm

11 87310367

  • 87310367 - BUCKET FORK

12 87310368

  • 87310368 - SUPPORT

13 87310369

  • 87310369 - PIN
  • 34mm OD x 134mm L

14 85825177

  • 85825177 - LOCK PIN
  • 8mm OD

15 87310370

  • 87310370 - BRACKET

16 87310378

  • 87310378 - SHAFT

17 85820064

  • 85820064 - PIN

18 85820068

  • 85820068 - LOCK PIN
  • 11mm OD

19 85820069

  • 85820069 - PLUG

20 87310373

  • 87310373 - HINGE

21 87310374

  • 87310374 - HINGE

22 87310375

  • 87310375 - HINGE

23 87557215

  • 87557215 - SCREW
  • M16 x 35mm

24 87395481

  • 87395481 - GUARD

25 87312330

  • 87312330 - GUARD

26 85820037

  • 85820037 - PLATE

27 85820036

  • 85820036 - RIVET
  • D4 x 10
