(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

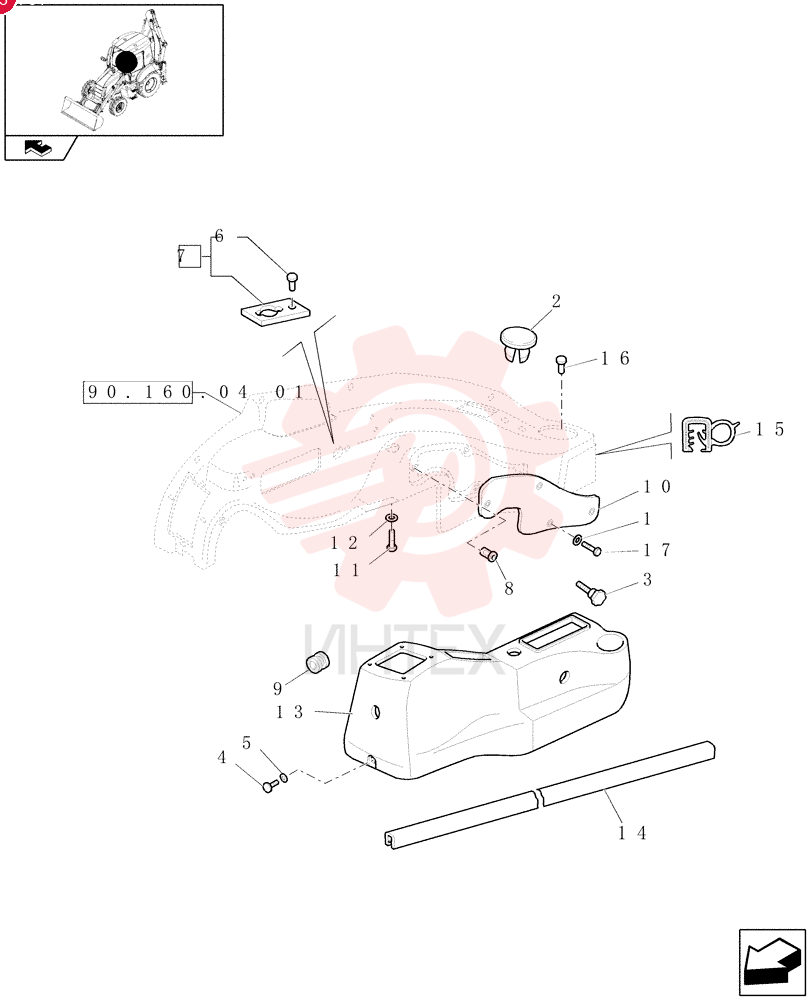

WASHER,6.3mm OD x 18mm ID x 4mm Thk

WASHER,6.3mm OD x 18mm ID x 4mm Thk

WASHER,6.3mm OD x 18mm ID x 4mm Thk

1 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

2 79111815

  • 79111815 - PLUG
  • 14-15mm OD

3 85805323

  • 85805323 - KNOB

4 14441521

  • 14441521 - SCREW
  • Flat Csk Hd
  • M6 x 25mm
  • Cl 8.8

5 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

6 10427201

  • 10427201 - RIVET
  • 4mm OD x 5mm L

7 85827548

  • 85827548 - PLATE

8 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

9 87517471

  • 87517471 - INSULATING RING
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk
  • Not Split without Diaphragm
  • CA

10 85801649

  • 85801649 - SOFT TRIM

11 13274217

  • 13274217 - SCREW
  • Pozidriv Pan Hd
  • M5 x 16mm
  • Cl 5.8
  • Full Thd

12 12647701

  • 12647701 - WASHER
  • 6.15mm ID x 21mm OD x 1mm Thk

13 87319785

  • 87319785 - SOFT TRIM

14 85812081

  • 85812081 - RUBBER STRIP

15 85819016

  • 85819016 - RUBBER STRIP

16 85808460

  • 85808460 - PLUG

17 13311017

  • 13311017 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M5 x 16mm
  • Cl 5.8
  • Full Thd
