(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

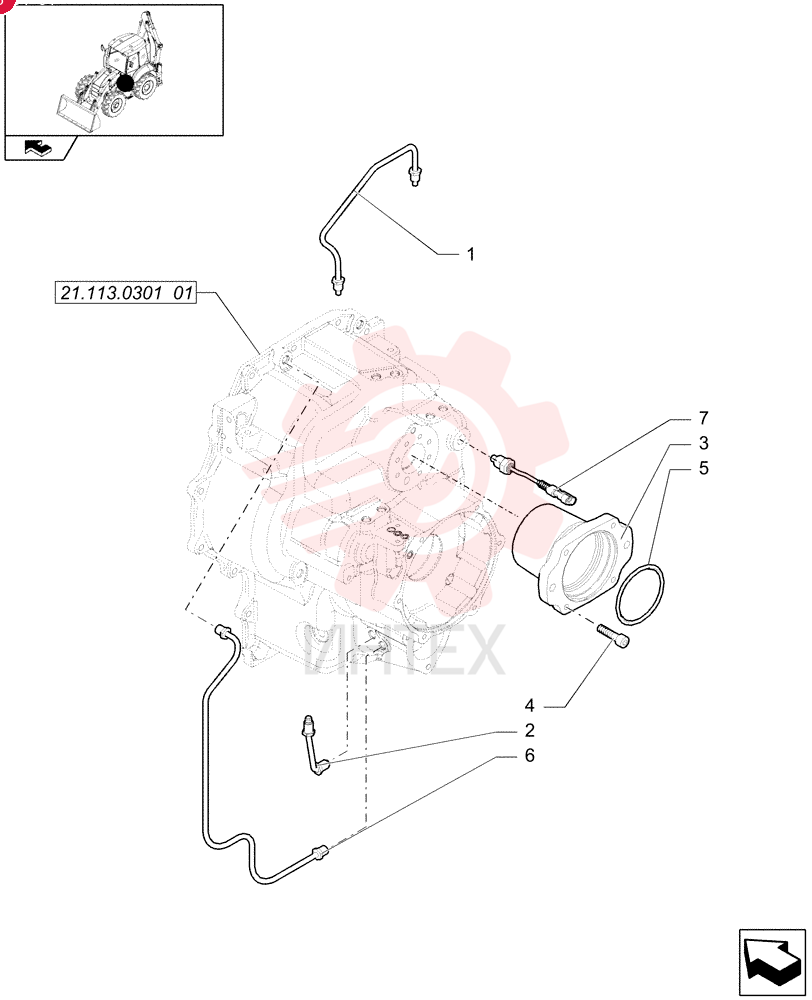

TUBE 87705446

TUBE 87705446

TUBE 87705446

1 87705446

  • 87705446 - TUBE

2 87705452

  • 87705452 - TUBE

3 87701269

  • 87701269 - FLANGE

4 87705895

  • 87705895 - BOLT
  • TCEI
  • M10 x 25mm
  • Cl 8.8

5 175156

  • 175156 - O-RING
  • 0.103" Thk x 4.987" ID
  • -159
  • Cl 5
  • 75 Duro

6 87705448

  • 87705448 - TUBE

7 87705447

  • 87705447 - SENSOR
