(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

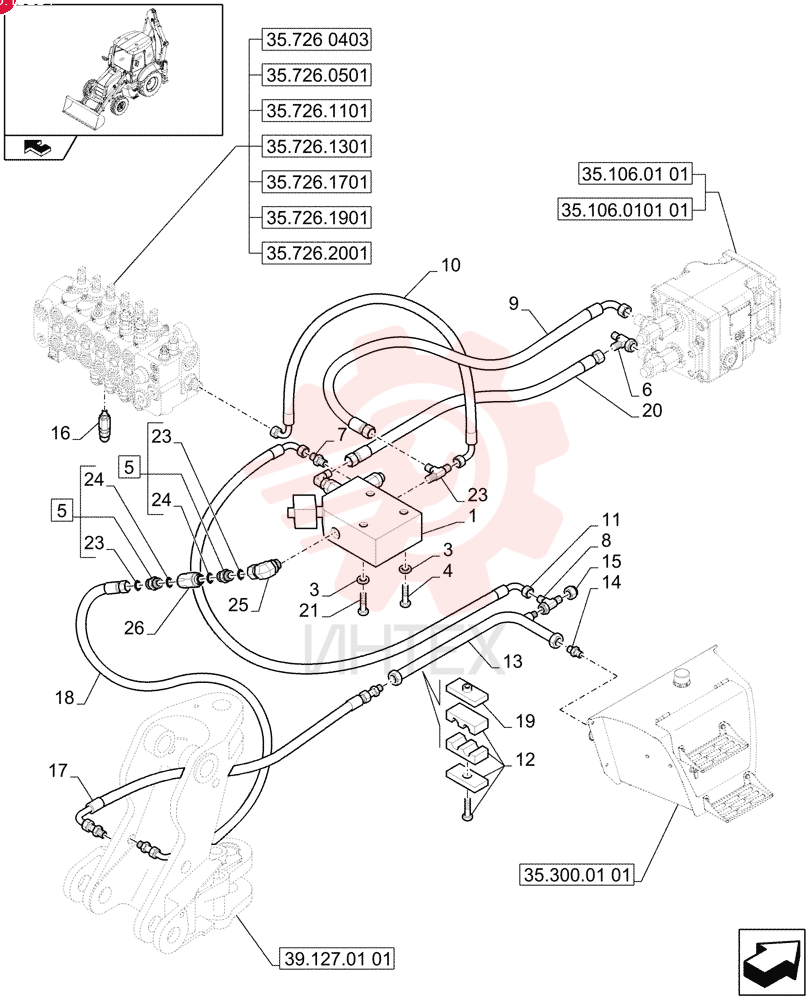

VALVE 87545337 (3)

VALVE 87545337 (3)

VALVE 87545337 (3)

1 87545337

  • 87545337 - VALVE

2 87498964

  • 87498964 - TEE
  • 1-7/16-12 ORFS x 1-1/16 UN/UNF 2A ORS x 1-7/16-12 ORFS

3 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

4 16044821

  • 16044821 - SCREW
  • Hex
  • M8 x 80mm
  • Cl 8.8

5 87303844

  • 87303844 - HYD CONNECTOR
  • 1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

6 84989848

  • 84989848 - TEE
  • 11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

7 83963371

  • 83963371 - FITTING
  • 11/16"-16 ORFS x 9/16"-18 ORB

8 85807876

  • 85807876 - TEE
  • 1-14 ORS x 11/16-16 ORS x 1-14 SAE

9 84128041

  • 84128041 - FLEXIBLE HOSE
  • 19mm ID x 800mm L

10 87389637

  • 87389637 - FLEXIBLE HOSE
  • 19mm ID x 695mm L

11 85817633

  • 85817633 - HYDRAULIC HOSE
  • 6.35mm ID x 2050mm L

12 87390530

  • 87390530 - CLAMP

13 84138954

  • 84138954 - RETURN PIPE

14 85802801

  • 85802801 - HYD CONNECTOR
  • 1-11/16-12 ORFS x 1-5/16-12 ORB

15 83987627

  • 83987627 - CAP
  • 1-14UN-2A

16 84211070

  • 84211070 - VALVE

17 85817635

  • 85817635 - HYDRAULIC HOSE
  • 19mm ID x 1400mm L

18 84360944

  • 84360944 - FLEXIBLE HOSE

19 87390531

  • 87390531 - PLATE

20 84121388

  • 84121388 - FLEXIBLE HOSE
  • 8mm ID x 900mm L

21 395851

  • 395851 - BOLT
  • Hex
  • M8 x 1.25 x 90mm
  • Cl 8.8
  • Full Thd

22 85802901

  • 85802901 - SPACER
  • 10mm ID x 16mm OD x 17.5mm L

23 9824050

  • 9824050 - O-RING
  • 0.07" Thk x 0.926" ID
  • -21
  • Cl 6
  • 90 Duro

24 167266

  • 167266 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro

25 84262694

  • 84262694 - 90 ELBOW
  • 1-7/16"-12 ORFS x 1-1/16"-12 ORB

26 85802372

  • 85802372 - CHECK VALVE
