(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

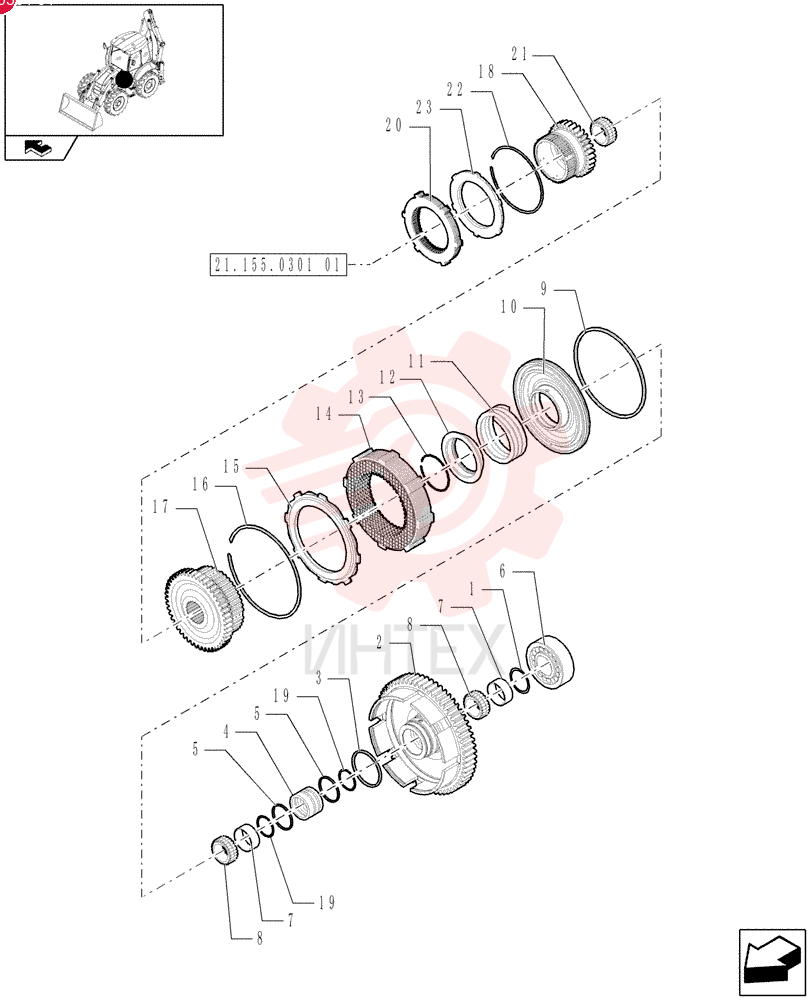

WASHER 87705522

WASHER 87705522

WASHER 87705522

1 87705522

  • 87705522 - WASHER

2 87705521

  • 87705521 - GEAR
  • 60T

3 87705520

  • 87705520 - SEAL KIT

4 87705519

  • 87705519 - SPACER

5 87705518

  • 87705518 - SEALING RING

6 87705469

  • 87705469 - BALL BEARING
  • 45 mm ID x 100 mm OD x 25 mm

7 87705516

  • 87705516 - BUSHING
  • 45mm ID x 50mm OD x 20.5mm L

8 87705515

  • 87705515 - NEEDLE BEARING
  • 50mm ID x 55mm OD x 20mm W

9 87705503

  • 87705503 - SEALING RING

10 87705502

  • 87705502 - PISTON

11 87705501

  • 87705501 - SPRING

12 87705494

  • 87705494 - COVER

13 87705493

  • 87705493 - CIRCLIP
  • 72.4mm ID x 2mm Thk

14 87705492

  • 87705492 - CLUTCH OVERHAUL KIT

15 87705483

  • 87705483 - CIRCLIP

16 87705482

  • 87705482 - CIRCLIP
  • 204.5mm OD x 3mm Thk

17 84367081

  • 84367081 - GEAR

18 87705480

  • 87705480 - GEAR
  • 30T

19 87705517

  • 87705517 - O-RING

20 87705479

  • 87705479 - CLUTCH OVERHAUL KIT

21 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

22 181116A1

  • 181116A1 - RING
  • LOCKING
  • 146.6mm ID x 2.5mm Thk

23 310519A1

  • 310519A1 - PLATE
