New Holland Construction
/
(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

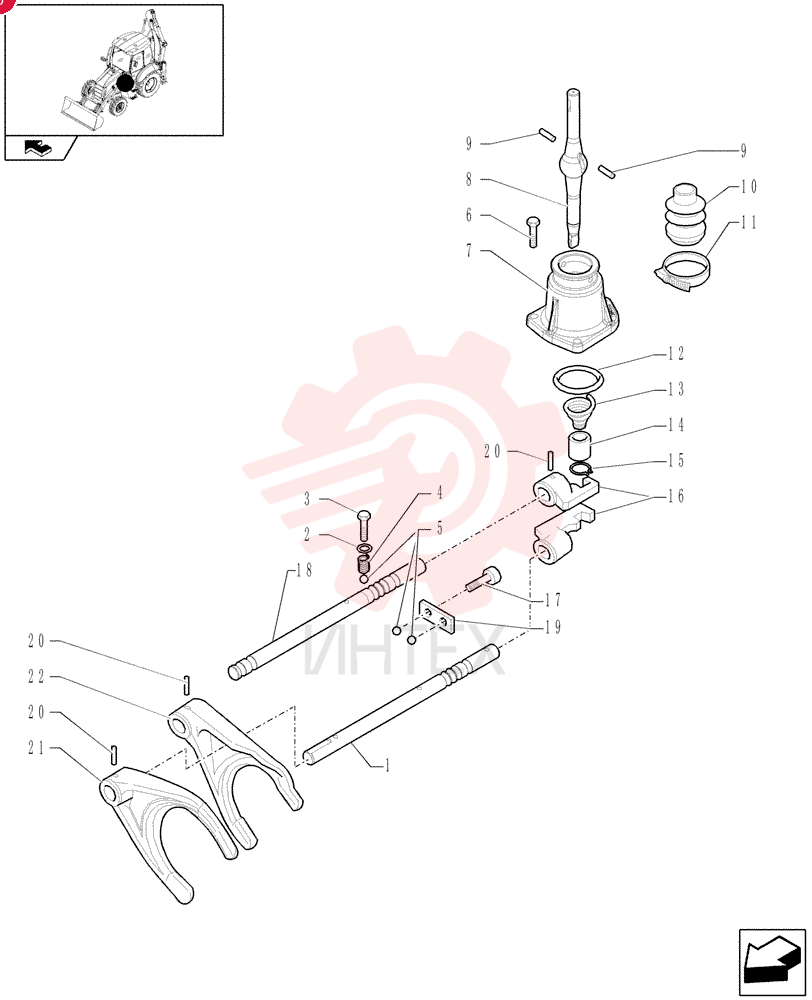

ROD 84336841

ROD 84336841

ROD 84336841

1 84336841

  • 84336841 - ROD

2 84587683

  • 84587683 - SHIFT RAIL

3 87429994

  • 87429994 - SEALING WASHER
  • 12mm ID x 20mm OD x 1.5mm Thk

4 87701338

  • 87701338 - BOLT
  • M10 x 1.5 x 25 - 8.8

5 1966993C1

  • 1966993C1 - SPRING

6 181139A1

  • 181139A1 - BALL
  • 10mm OD

7 864-8025

  • 864-8025 - HEX SOC SCREW
  • M8 x 25mm
  • Cl 8.8

8 84211363

  • 84211363 - SUPPORT

9 181171A1

  • 181171A1 - COVER

10 84211366

  • 84211366 - LEVER

11 84336842

  • 84336842 - CONTROL LEVER

12 1967585C1

  • 1967585C1 - PIN

13 1967581C1

  • 1967581C1 - BOOT

14 181177A1

  • 181177A1 - CLAMP

15 181138A1

  • 181138A1 - O-RING
  • 0.103" Thk x 2.362" ID
  • -142
  • Cl 5
  • 75 Duro

16 278533A1

  • 278533A1 - SPRING

17 278532A1

  • 278532A1 - BUSHING

18 279039A1

  • 279039A1 - RING
  • SNAP

19 84211368

  • 84211368 - LEVER

20 864-10025

  • 864-10025 - HEX SOC SCREW
  • M10 x 25mm
  • Cl 8.8

21 84336840

  • 84336840 - ROD

22 84336839

  • 84336839 - PIN

23 181175A1

  • 181175A1 - PLATE

24 905794R1

  • 905794R1 - PIN
  • M6 x 30
  • Coiled

25 181203A1

  • 181203A1 - SHIFTER FORK

26 84468426

  • 84468426 - FORK

27 181174A2

  • 181174A2 - SHIFTER FORK
