(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

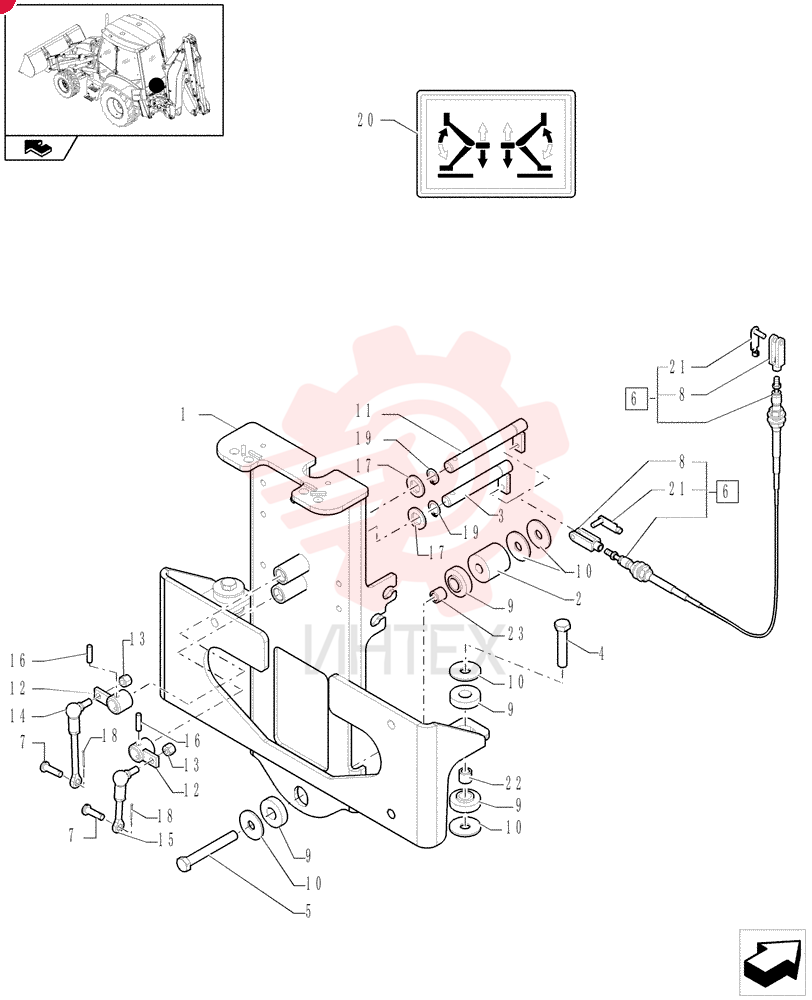

TOWER 84173571

TOWER 84173571

TOWER 84173571

1 84173571

  • 84173571 - TOWER

2 85820170

  • 85820170 - SPACER
  • 13mm ID x 40mm OD x 38mm L

3 84160885

  • 84160885 - PIN

4 84410866

  • 84410866 - PIN
  • 16mm OD x 117.8mm L

5 9706693

  • 9706693 - BOLT
  • M12 x 60mm
  • Cl 8.8

6 86508581

  • 86508581 - BOLT
  • Hex
  • M12 x 90mm
  • Cl 8.8

7 84410592

  • 84410592 - FLEXIBLE CABLE
  • 900mm L

8 335040

  • 335040 - CLEVIS PIN
  • M8 x 28mm OAL

9 D149287

  • D149287 - PIN
  • 7.9mm OD x 26.72mm L

10 84813186

  • 84813186 -

11 87348165

  • 87348165 - ISOLATOR

12 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

13 84160883

  • 84160883 - PIN

14 84410865

  • 84410865 - PIN
  • 16mm OD x 140.8mm L

15 84161411

  • 84161411 - CRANK

16 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND

17 84161602

  • 84161602 - THREADED ROD
  • M8 x 81.2mm L

18 84161601

  • 84161601 - THREADED ROD
  • M8 x 49.3mm L

19 85805616

  • 85805616 - PIN
  • 6.35mm OD x 25.4mm L

20 14496901

  • 14496901 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

21 87016662

  • 87016662 - HAIR PIN COTTER
  • M2 x 18mm L

22 432-612

  • 432-612 - COTTER PIN
  • 3/32" x 3/4"

23 83911366

  • 83911366 - E-RING
  • M16 x 1.16mm Thk

24 85803788

  • 85803788 - IDEOGRAM

25 85813187

  • 85813187 - CLEVIS
  • M6 x 1

26 85817252

  • 85817252 - BUSHING
  • 12.5mm ID x 16.5mm OD x 24mm L

27 85820172

  • 85820172 - BUSHING
  • 12.5mm ID x 16.5mm OD x 22mm L
