(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

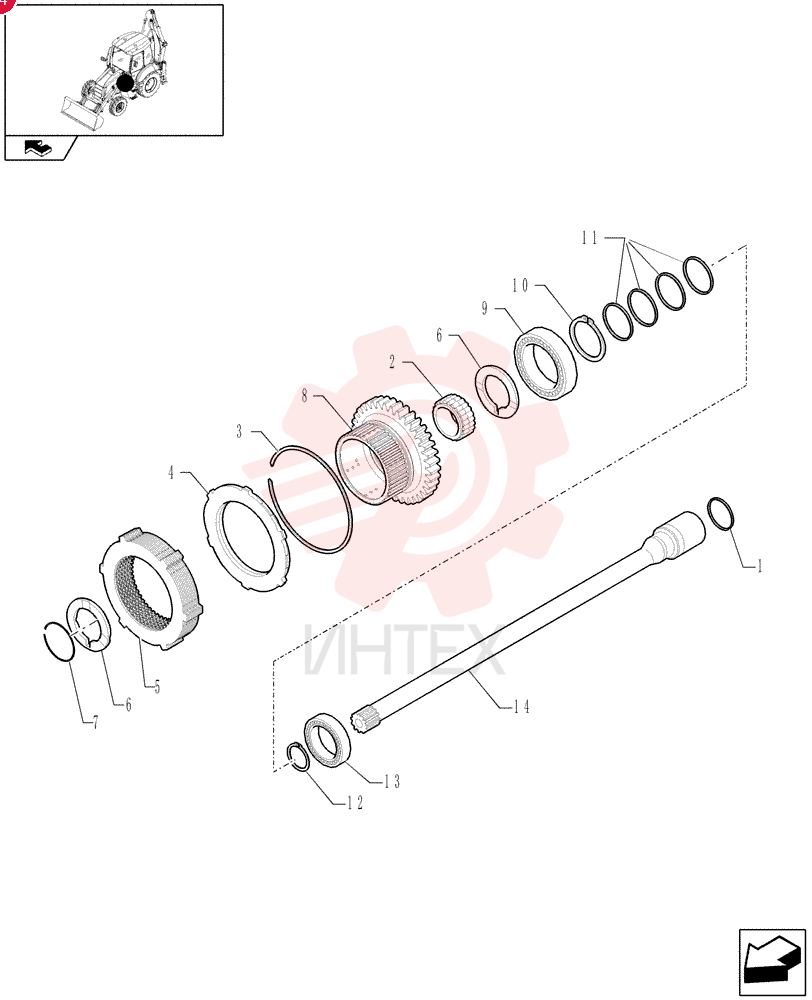

SEALING RING 358645A1 (1)

SEALING RING 358645A1 (1)

SEALING RING 358645A1 (1)

1 358645A1

  • 358645A1 - SEALING RING

2 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

3 181116A1

  • 181116A1 - RING
  • LOCKING
  • 146.6mm ID x 2.5mm Thk

4 310519A1

  • 310519A1 - PLATE

5 87705458

  • 87705458 - CLUTCH OVERHAUL KIT

6 358640A1

  • 358640A1 - WASHER

7 181111A1

  • 181111A1 - RING
  • LOCKING
  • 47.8mm ID x 1.5mm Thk

8 358638A1

  • 358638A1 - PINION
  • 39T

9 ST264

  • ST264 - BEARING
  • BALL
  • 50 mm ID x 90 mm OD x 20 mm

10 800-1150

  • 800-1150 - SNAP RING
  • M50
  • Ext

11 87429984

  • 87429984 - RING

12 800-1130

  • 800-1130 - SNAP RING
  • M30
  • Ext

13 87429983

  • 87429983 - BALL BEARING
  • 30mm ID x 55mm OD x 13mm W

14 87705460

  • 87705460 - PTO SHAFT
