(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

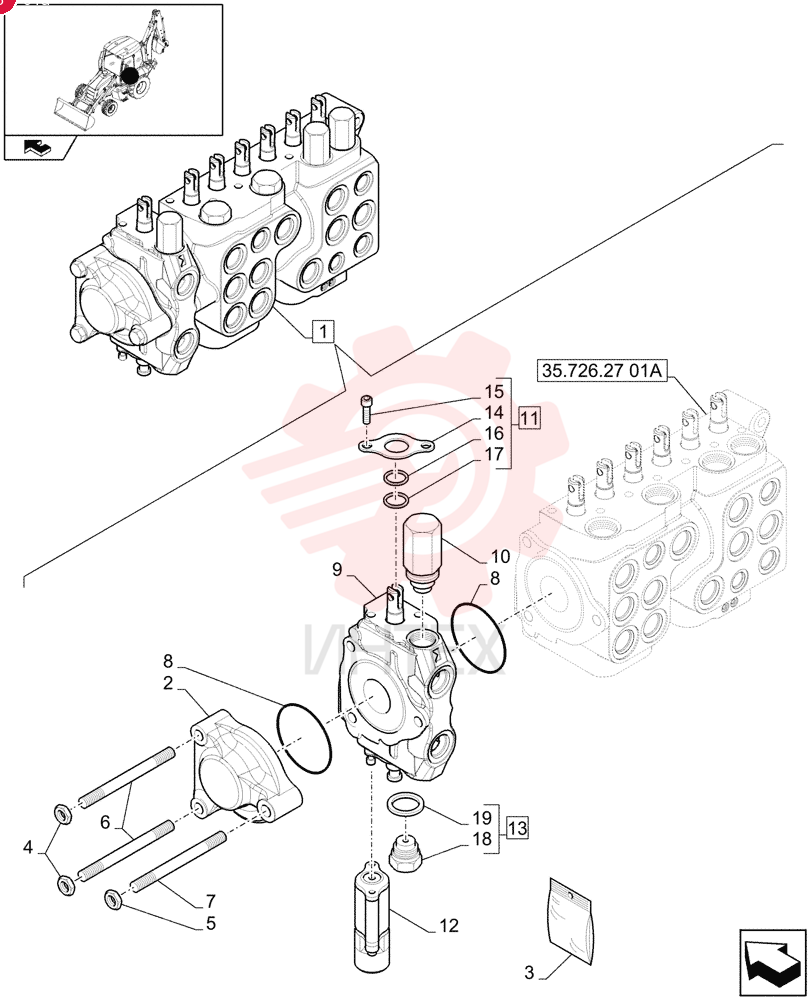

VALVE 47579592 (1)

VALVE 47579592 (1)

VALVE 47579592 (1)

1 47579592

  • 47579592 - VALVE

2 87433030

  • 87433030 - OUTLET

3 47512625

  • 47512625 - KIT

4 47520609

  • 47520609 - NUT

5 47520611

  • 47520611 - NUT

6 47538074

  • 47538074 - TIE-ROD

7 47538075

  • 47538075 - TIE-ROD

8 87428495

  • 87428495 - O-RING
  • 3.50" ID x 3.76" OD x .139" thk

9 NSS

  • NSS - NOT SOLD SEPARAT

10 47556599

  • 47556599 - VALVE PRESSURE RELIE
  • 124 Bar

11 87541939

  • 87541939 - GASKET KIT

12 84296859

  • 84296859 - KIT

13 83981068

  • 83981068 - STOP PLUG
  • Hex
  • 1/16 - 12 UN

14 NSS

  • NSS - NOT SOLD SEPARAT

15 87455540

  • 87455540 - HEX SOC SCREW

16 71103058

  • 71103058 - O-RING

17 85999136

  • 85999136 - SEAL
  • 17.6mm ID x 26.84mm OD x 5.42mm Thk

18 NSS

  • NSS - NOT SOLD SEPARAT

19 87308628

  • 87308628 - PLASTIC RING
