(B90B) - BACKHOE LOADER TIER 3 (2008)
/

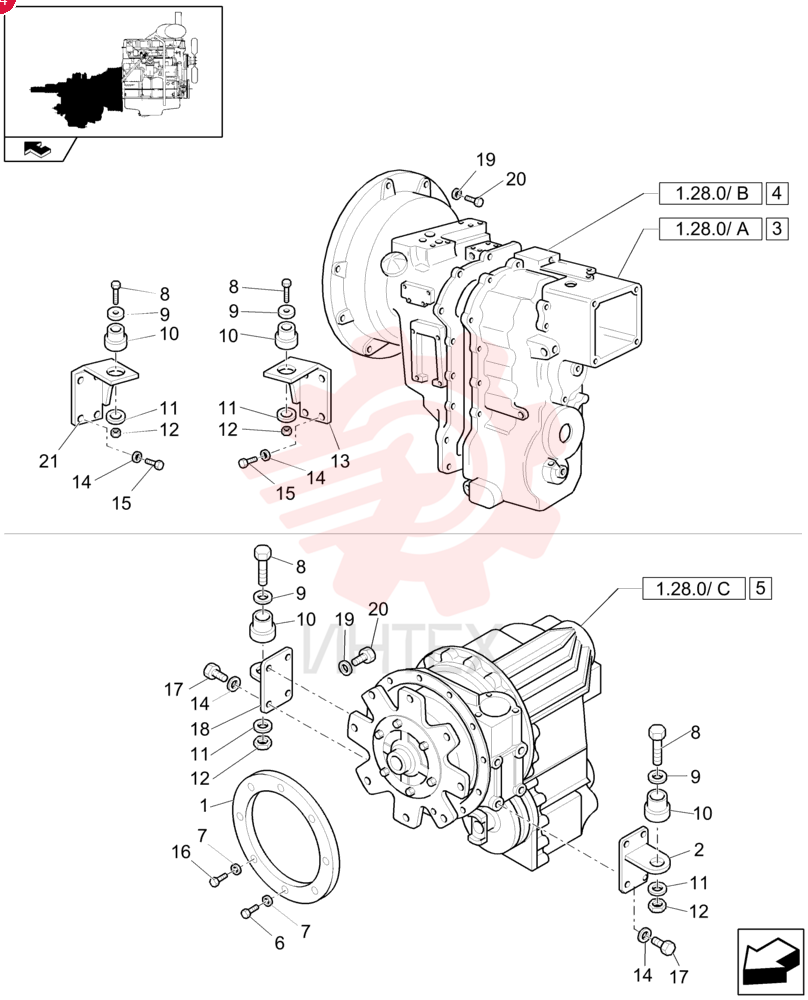

RING 87407758

RING 87407758

RING 87407758

1 87407758

  • 87407758 - RING

2 85804276

  • 85804276 - SUPPORT

3 86990712

  • 86990712 - TRANSMISSION

4 86990712R

  • 86990712R - REMAN-TRANSMISSION

5 86990712C

  • 86990712C - CORE-TRANSMISSION

6 86990713

  • 86990713 - TRANSMISSION

7 86990713R

  • 86990713R - REMAN-TRANSMISSION

8 86990713C

  • 86990713C - CORE-TRANSMISSION

9 87749355

  • 87749355 - TRANSMISSION

10 87749354

  • 87749354 - TRANSMISSION

11 87021704

  • 87021704 - 12 PT SCREW
  • M10 x 1.25 x 50mm
  • Cl 10.9

12 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

13 87410647

  • 87410647 - BOLT
  • Hex
  • M12 x 1.25 x 90mm
  • Cl 8.8

14 85801585

  • 85801585 - SEALING WASHER
  • 13mm ID x 65mm OD x 5mm Thk

15 87416967

  • 87416967 - SUPPORT

16 85802618

  • 85802618 - SEALING WASHER
  • 13mm ID x 41mm OD x 3mm Thk

17 16105011

  • 16105011 - NUT
  • Hex
  • M12 x 1.25
  • Cl 8

18 87405629

  • 87405629 - SUPPORT

19 11198679

  • 11198679 - BELLEVILLE WASHER
  • 13mm ID x 24mm OD x 0.6mm Thk

20 11112634

  • 11112634 - SCREW

21 87019767

  • 87019767 - 12 PT SCREW
  • M10 x 1.25 x 30mm
  • Cl 10.9

22 11112434

  • 11112434 - BOLT
  • Hex
  • M12 x 30mm
  • Cl 10.9
  • Full Thd

23 85804275

  • 85804275 - SUPPORT

24 47049372

  • 47049372 - WASHER

25 11106434

  • 11106434 - BOLT
  • Hex
  • M10 x 30mm
  • Cl 10.9
  • Full Thd

26 87405628

  • 87405628 - SUPPORT
