New Holland Construction
/
(B90B) - BACKHOE LOADER TIER 3 (2008)
/

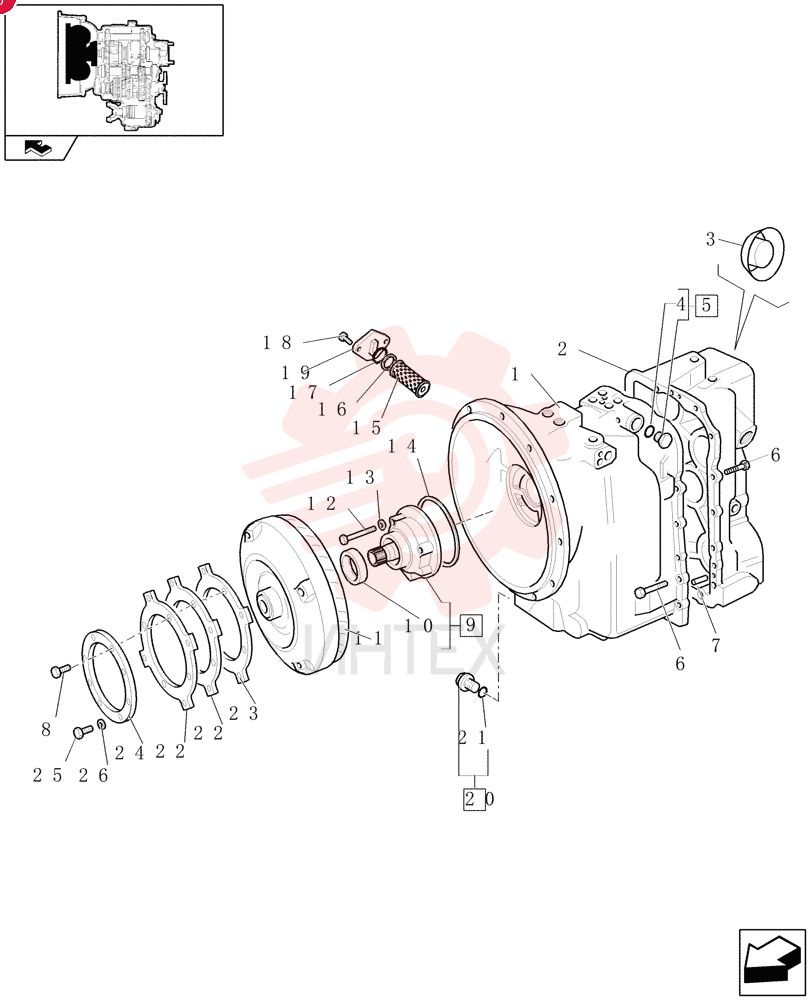

TRANSMISSION HOUSING 85827769

TRANSMISSION HOUSING 85827769

TRANSMISSION HOUSING 85827769

1 85827769

  • 85827769 - TRANSMISSION HOUSING

2 85827770

  • 85827770 - TRANSMISSION HOUSING

3 85812096

  • 85812096 - PLUG

4 9968218

  • 9968218 - SEALING RING

5 9968219

  • 9968219 - PLUG

6 85817164

  • 85817164 - BOLT

7 9968356

  • 9968356 - DOWEL

8 87019767

  • 87019767 - 12 PT SCREW
  • M10 x 1.25 x 30mm
  • Cl 10.9

9 1183269

  • 1183269 - 12 PT SCREW
  • M10 x 1.5 x 30mm
  • Cl 10.9

10 9968311

  • 9968311 - PUMP

11 9968312

  • 9968312 - SEAL
  • 48mm ID x 62mm OD x 8mm Thk

12 87400114

  • 87400114 - TORQUE CONVERTER

13 87400114R

  • 87400114R - REMAN-TORQUE CONVERT

14 87400114C

  • 87400114C - CORE-TORQUE CONVERTR

15 85817163

  • 85817163 - BOLT

16 85817001

  • 85817001 - RUBBER WASHER

17 9968313

  • 9968313 - SEAL

18 9968359

  • 9968359 - FILTER

19 9968361

  • 9968361 - WASHER

20 9968360

  • 9968360 - SEALING RING

21 85817169

  • 85817169 - SET SCREW

22 9968362

  • 9968362 - BELL HOUSING

23 9968339

  • 9968339 - PLUG

24 9968365

  • 9968365 - SEALING RING

25 86993546

  • 86993546 - PLATE
  • 224mm ID x 284mm OD x 0.5mm Thk

26 87406934

  • 87406934 - PLATE

27 47442982

  • 47442982 - KIT

28 87409201

  • 87409201 - BACKING PLATE
  • 228mm ID x 280mm OD x 1.5mm Thk

29 11106021

  • 11106021 - BOLT
  • Hex
  • M10 x 1.5 x 20 mm
  • Cl 8.8
  • Full Thd

30 47049372

  • 47049372 - WASHER
