(B90B) - BACKHOE LOADER TIER 3 (2008)
/

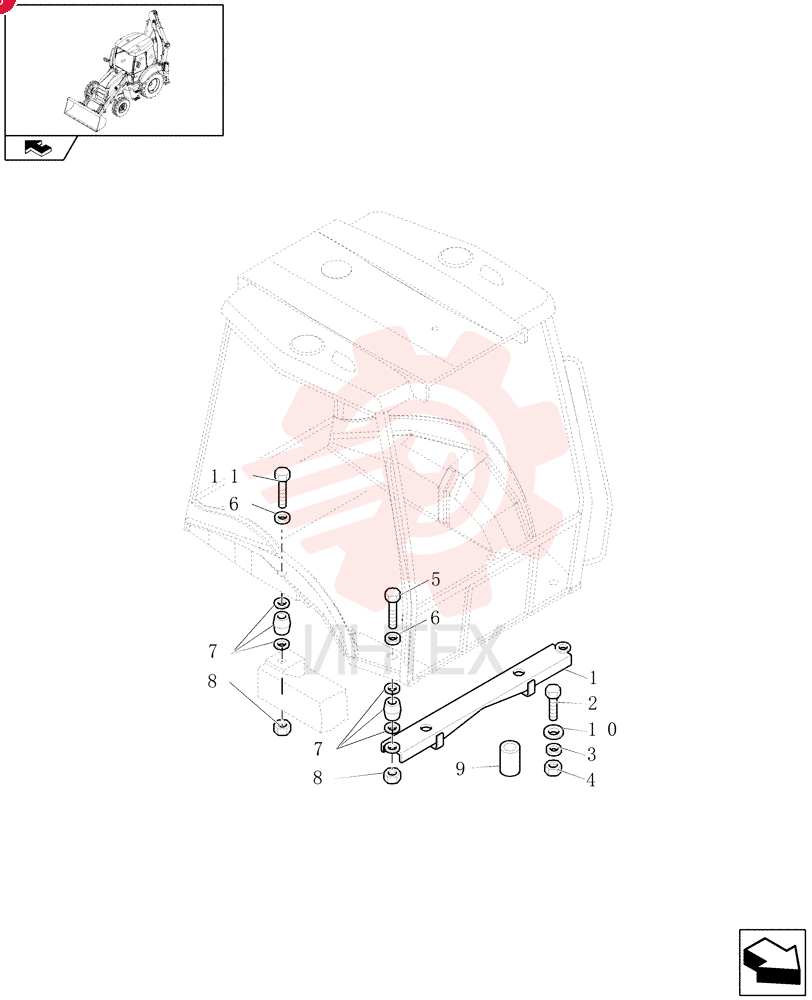

SUPPORT 85801319

SUPPORT 85801319

SUPPORT 85801319

1 85801319

  • 85801319 - SUPPORT

2 87303780

  • 87303780 - SUPPORT

3 15989334

  • 15989334 - BOLT
  • Hex
  • M20 x 1.5 x 110mm
  • Cl 10.9

4 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

5 12575121

  • 12575121 - NUT
  • M20 x 1.5
  • Cl 10

6 15982134

  • 15982134 - BOLT
  • Hex
  • M16 x 1.5 x 140mm
  • Cl 10.9

7 14496931

  • 14496931 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

8 87569589

  • 87569589 - ISOLATOR
  • 62.5mm OD x 77.5mm L

9 15504021

  • 15504021 - NUT
  • M16 x 1.5

10 85801324

  • 85801324 - SPACER
  • 21mm ID x 30mm OD x 50mm L

11 85804493

  • 85804493 - WASHER

12 15981834

  • 15981834 - BOLT
  • Hex
  • M16 x 1.5 x 120mm
  • Cl 10.9
