New Holland Construction
/
(B95) - NA BACKHOE LOADER (1/06-)
/

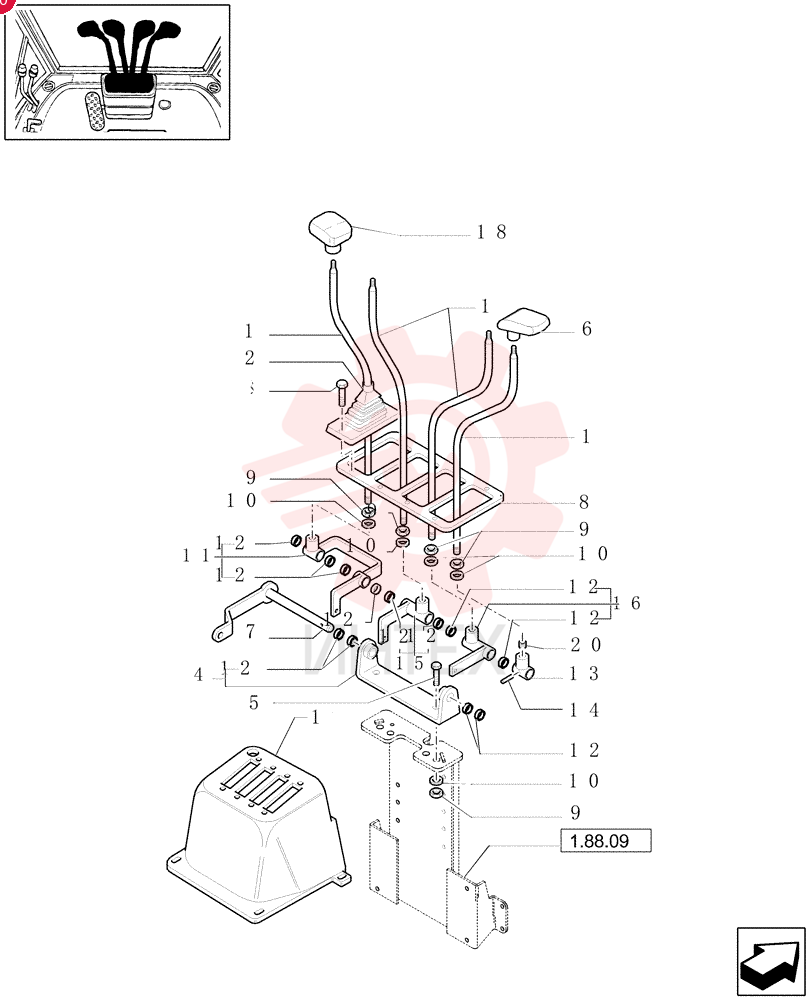

CONVERSION KIT 741353019

CONVERSION KIT 741353019

CONVERSION KIT 741353019

1 741353019

  • 741353019 - CONVERSION KIT

2 718394019

  • 718394019 - CONVERSION KIT

3 85804780

  • 85804780 - LEVER

4 85803382

  • 85803382 - BOOT

5 13272477

  • 13272477 - SCREW
  • Pozidriv Pan Hd
  • M4 x 20mm
  • Full Thd
  • SST

6 85802647

  • 85802647 - SUPPORT

7 15540421

  • 15540421 - SCREW
  • Hex
  • M12 x 1.25 x 30mm
  • Cl 8.8
  • Full Thd

8 83962918

  • 83962918 - HANDLE

9 85804782

  • 85804782 - PIN
  • 16mm OD x 219mm L

10 85803540

  • 85803540 - PLATE

11 16101511

  • 16101511 - NUT
  • M12 x 1.25
  • Cl 8

12 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

13 85804801

  • 85804801 - BELLCRANK

14 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

15 85804787

  • 85804787 - BELLCRANK

16 13940370

  • 13940370 - ROLL PIN
  • M5 x 26
  • Coiled

17 85804794

  • 85804794 - BELLCRANK

18 85804791

  • 85804791 - BELLCRANK

19 87319744

  • 87319744 - DASHBOARD

20 83962919

  • 83962919 - HANDLE

21 13812631

  • 13812631 - SET SCREW
  • Hex Soc
  • M12 x 12mm
  • Flat Pt
