New Holland Construction
/
(B95) - NA BACKHOE LOADER (1/06-)
/

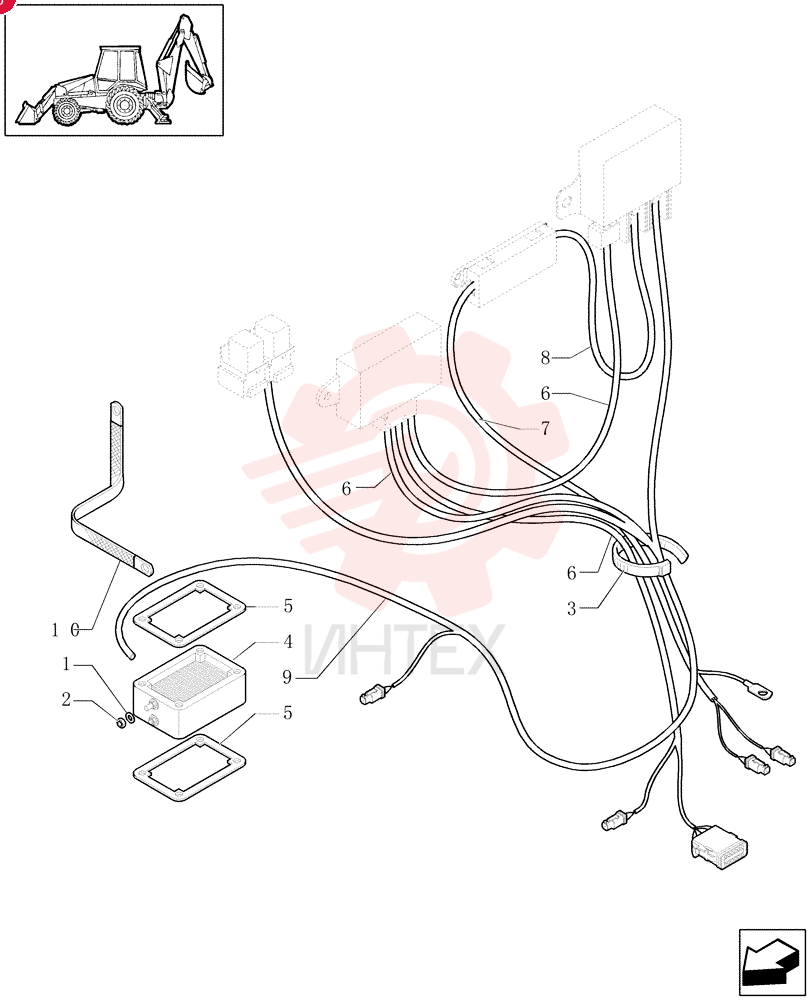

WASHER 47048961

WASHER 47048961

WASHER 47048961

1 47048961

  • 47048961 - WASHER

2 47049029

  • 47049029 - NUT

3 47048702

  • 47048702 - CABLE TIE
  • M4.8 x 292

4 82017872

  • 82017872 - HEATER

5 86014151

  • 86014151 - GASKET
  • 93mm L x 98mm L

6 87380322

  • 87380322 - HARNESS

7 87410264

  • 87410264 - WIRE HARNESS

8 87410265

  • 87410265 - BAR

9 87410266

  • 87410266 - WIRE HARNESS

10 87413162

  • 87413162 - GROUND STRAP
