(B95) - NA BACKHOE LOADER (1/06-)
/

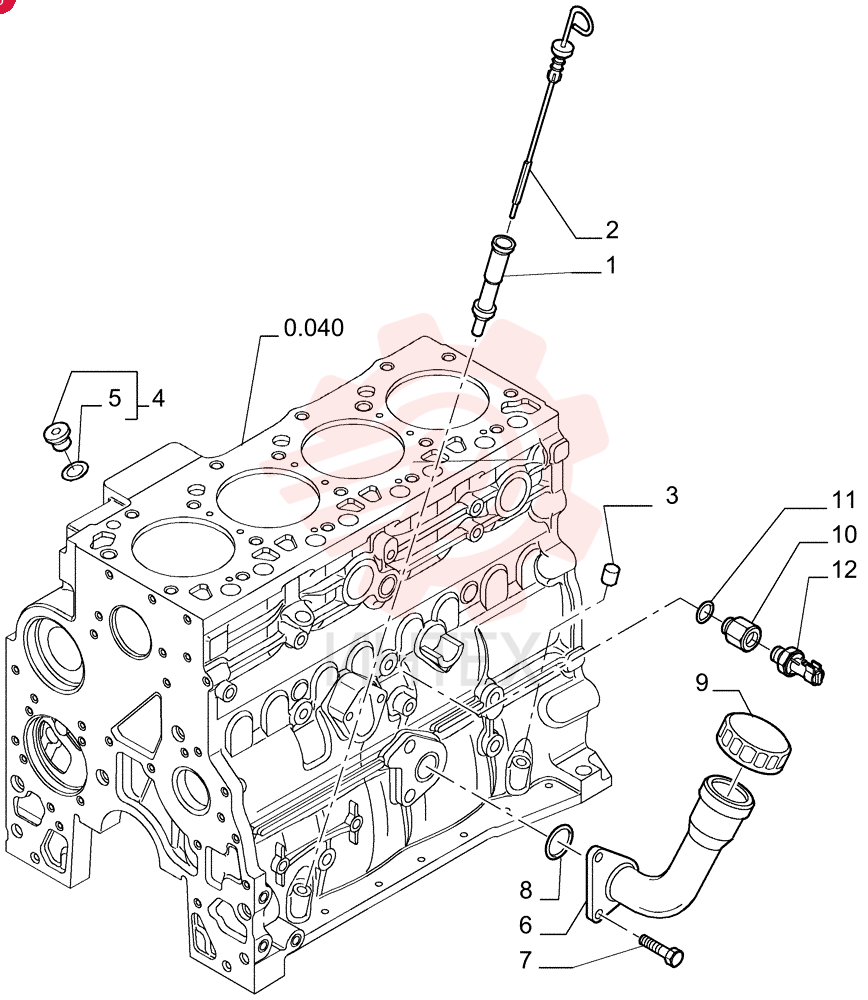

TUBE,81 mm Length 2852122 (2)

TUBE,81 mm Length 2852122 (2)

TUBE,81 mm Length 2852122 (2)

1 2852122

  • 2852122 - TUBE
  • 81 mm Length

2 2852125

  • 2852125 - DIPSTICK
  • 351.5mm L

3 4899036

  • 4899036 - PLUG

4 4897330

  • 4897330 - HEX SOCKET PLUG
  • M12 x 1.5

5 4895610

  • 4895610 - O-RING
  • 2.2mm Thk x 9.3mm ID

6 2852130

  • 2852130 - RIGID TUBE
  • 42.43 mm OD
  • 150
  • 119.4 mm Length

7 2852134

  • 2852134 - FLANGE BOLT
  • Hex
  • M12 x 1.75 x 25mm

8 2852135

  • 2852135 - O-RING
  • 2.6mm Thk x 37.7mm ID

9 2852136

  • 2852136 - CAP
  • 48mm ID x 56mm OD x 18mm W

10 2852140

  • 2852140 - HYD CONNECTOR

11 4899115

  • 4899115 - O-RING
  • 2.2mm Thk x 11.3mm ID

12 87803147

  • 87803147 - PRESSURE SWITCH

13 87803148

  • 87803148 - PRESSURE SWITCH
