New Holland Construction
/
(B95) - NA BACKHOE LOADER (1/06-)
/

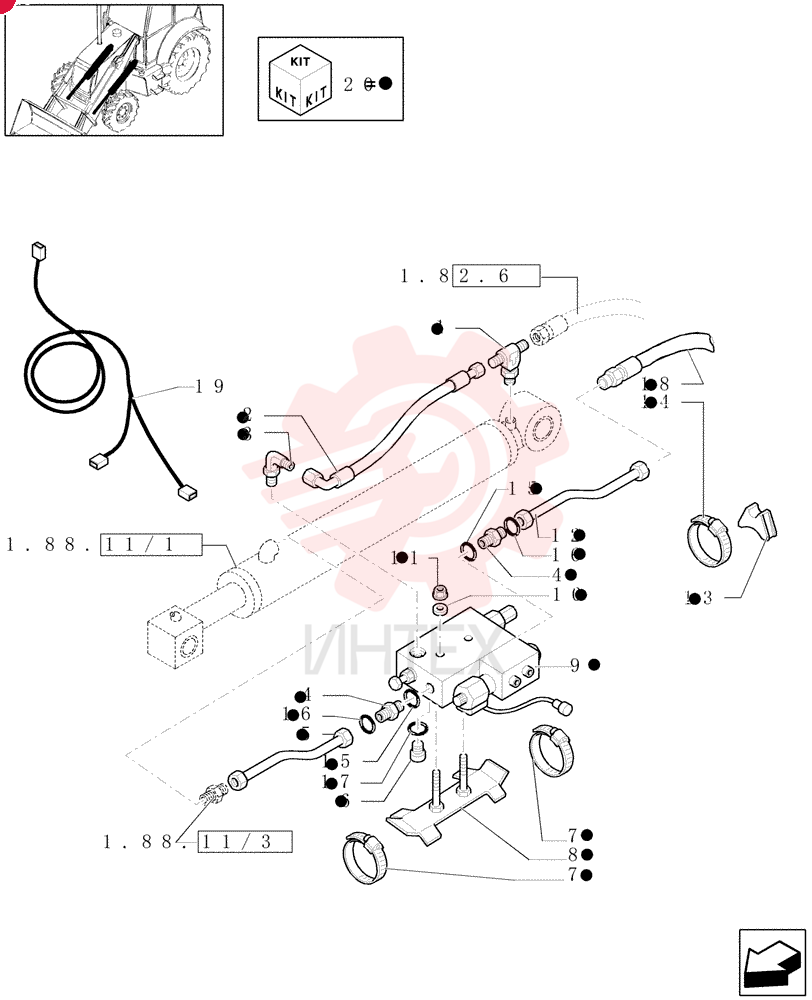

TEE,13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB

TEE,13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB

TEE,13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB

1 85805218

  • 85805218 - TEE
  • 13/16'-16 ORFS x 9/16'-18 x 7/8'-14 ORB

2 85815506

  • 85815506 - FLEXIBLE HOSE
  • 6.35mm ID x 300mm L

3 85805220

  • 85805220 - ELBOW
  • 90 Degree
  • 9/16"-18 x 9/16"-18 Adj
  • ORFS

4 390953S36

  • 390953S36 - HYD CONNECTOR

5 85805262

  • 85805262 - HYD TUBE
  • 12 mm OD x 360
  • 15 mm L

6 85802805

  • 85802805 - PLUG
  • 9/16" - 18

7 85803010

  • 85803010 - HOSE CLAMP
  • 80mm - 100mm

8 85805221

  • 85805221 - SUPPORT

9 85805224

  • 85805224 - HYDRAULIC VALVE

10 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

11 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

12 85805264

  • 85805264 - HYD TUBE
  • 12 mm OD x 215
  • 20 mm L

13 87303910

  • 87303910 - SPACER
  • R8mm
  • R45mm

14 85802743

  • 85802743 - HOSE CLAMP
  • 3"1/2 - 4"3/8

15 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

16 9825770

  • 9825770 - O-RING
  • 0.07" Thk x 0.301" ID
  • -11
  • Cl 6
  • 90 Duro

17 85813361

  • 85813361 - HYDRAULIC HOSE
  • 9.53mm ID x 1130mm L

18 85826276

  • 85826276 - WIRE HARNESS

19 NSS

  • NSS - NOT SOLD SEPARAT

20 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
