New Holland Construction
/
(B95) - NA BACKHOE LOADER (1/06-)
/

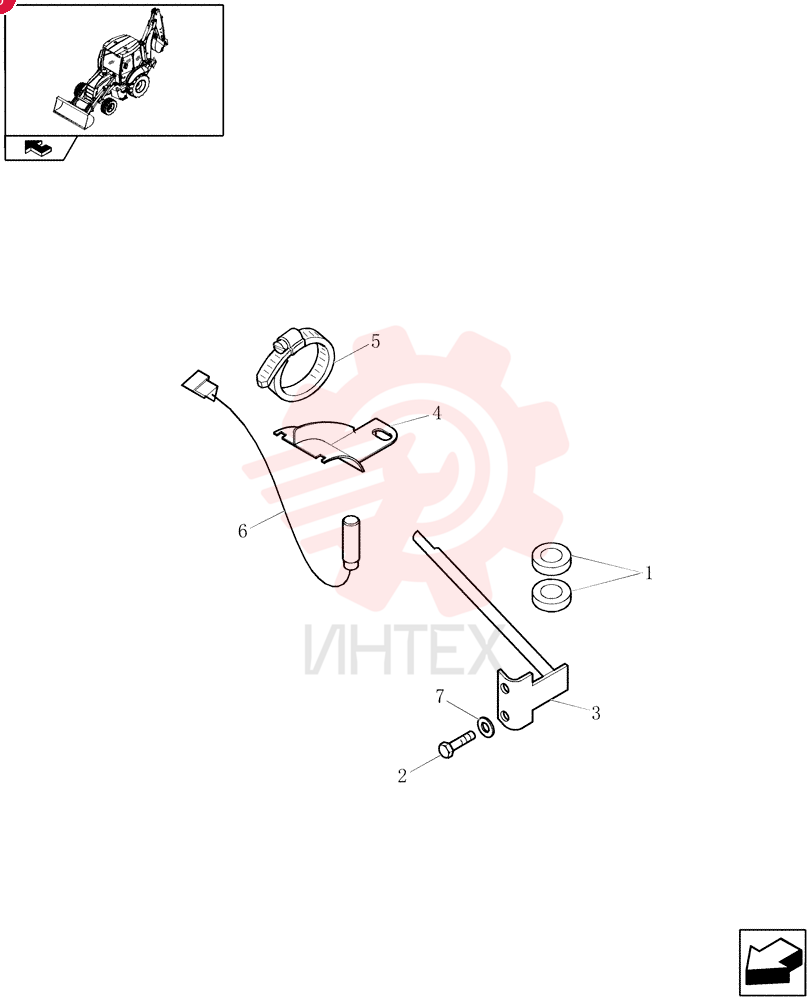

WASHER,19mm ID x 34mm OD x 3mm Thk

WASHER,19mm ID x 34mm OD x 3mm Thk

WASHER,19mm ID x 34mm OD x 3mm Thk

1 14497001

  • 14497001 - WASHER
  • 19mm ID x 34mm OD x 3mm Thk

2 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

3 87327398

  • 87327398 - LEVEL GAUGE

4 87539065

  • 87539065 - BRACKET
  • SUPPORTING

5 85803010

  • 85803010 - HOSE CLAMP
  • 80mm - 100mm

6 85805619

  • 85805619 - SENSOR

7 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk
