(B95) - NA BACKHOE LOADER (1/06-)
/

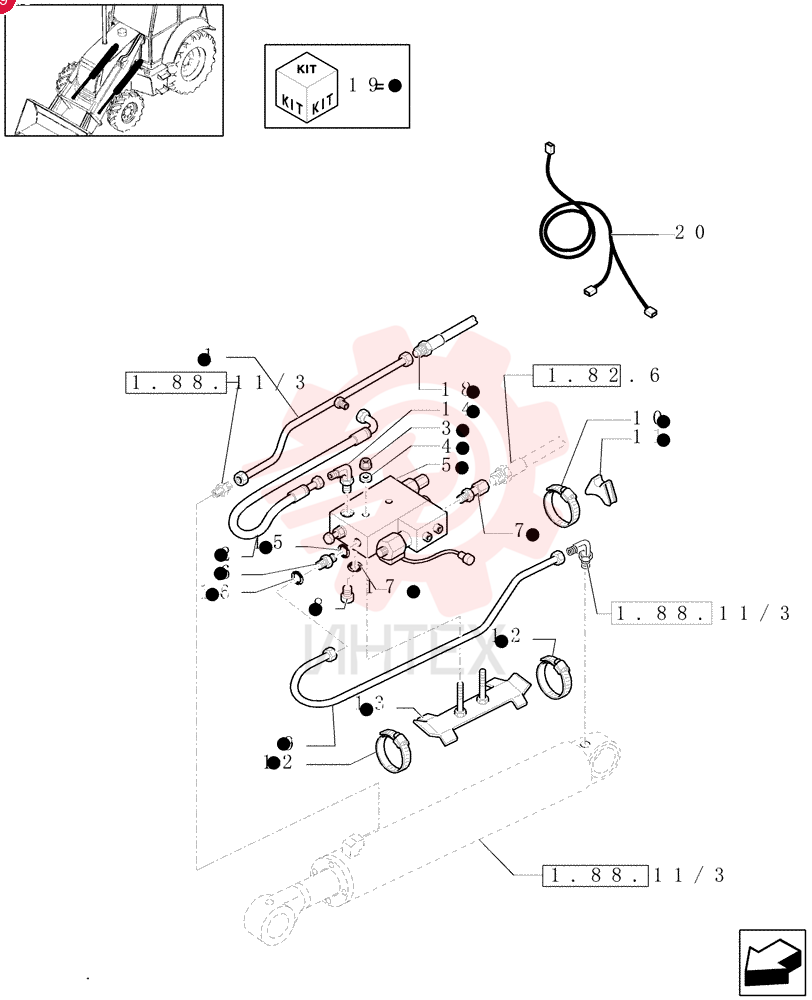

TUBE,12 mm OD x 440, 70 mm L

TUBE,12 mm OD x 440, 70 mm L

TUBE,12 mm OD x 440, 70 mm L

1 85805266

  • 85805266 - TUBE
  • 12 mm OD x 440
  • 70 mm L

2 85815506

  • 85815506 - FLEXIBLE HOSE
  • 6.35mm ID x 300mm L

3 14048221

  • 14048221 - NUT
  • M8 x 1.25
  • Cl 10

4 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

5 85805223

  • 85805223 - HYDRAULIC VALVE

6 390953S36

  • 390953S36 - HYD CONNECTOR

7 85805217

  • 85805217 - FITTING
  • 13/16"-16 ORFS Fem x 3/4"-16 ORB

8 85802805

  • 85802805 - PLUG
  • 9/16" - 18

9 85805271

  • 85805271 - HYD TUBE
  • 12 mm OD x 534
  • 60 mm L

10 85805273

  • 85805273 - HYD TUBE

11 85803008

  • 85803008 - HOSE CLAMP
  • 110mm - 130mm

12 E7NNB165AA

  • E7NNB165AA - SPACER

13 87303910

  • 87303910 - SPACER
  • R8mm
  • R45mm

14 85802743

  • 85802743 - HOSE CLAMP
  • 3"1/2 - 4"3/8

15 85805221

  • 85805221 - SUPPORT

16 85805220

  • 85805220 - ELBOW
  • 90 Degree
  • 9/16"-18 x 9/16"-18 Adj
  • ORFS

17 128825

  • 128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

18 9825770

  • 9825770 - O-RING
  • 0.07" Thk x 0.301" ID
  • -11
  • Cl 6
  • 90 Duro

19 85813363

  • 85813363 - FLEXIBLE HOSE
  • 9.53mm ID x 550mm L

20 NSS

  • NSS - NOT SOLD SEPARAT

21 85826275

  • 85826275 - WIRE HARNESS

22 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
