(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

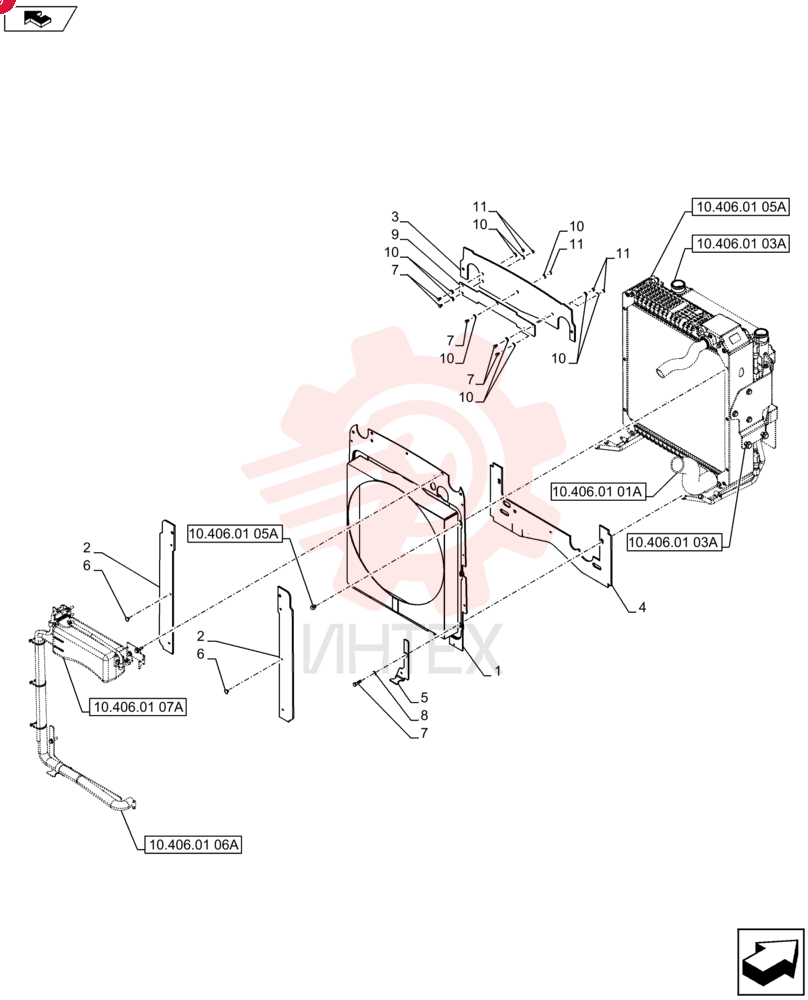

Схема (B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-) 84488912 (1)

Схема (B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-) 84488912 (1)

Схема (B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-) 84488912 (1)

1 84488912

  • 84488912 -

2 47829468

  • 47829468 - SEAL
  • 606mm L x 72.7mm W x 5mm Thk

3 47609975

  • 47609975 - SEAL

4 84539940

  • 84539940 - SEAL
  • 5mm Thk

5 87446081

  • 87446081 - RETAINING PLATE
  • 195mm x 62mm x 43mm L

6 87301355

  • 87301355 - RIVET
  • Pop
  • 3/16" x .575"

7 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

8 140016

  • 140016 - WASHER
  • M8 x 16mm OD x 1.6mm Thk

9 47624740

  • 47624740 - PLATE

10 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

11 412250

  • 412250 - NUT
  • M8 x 1.25
  • Cl 8
