New Holland Construction
/
(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

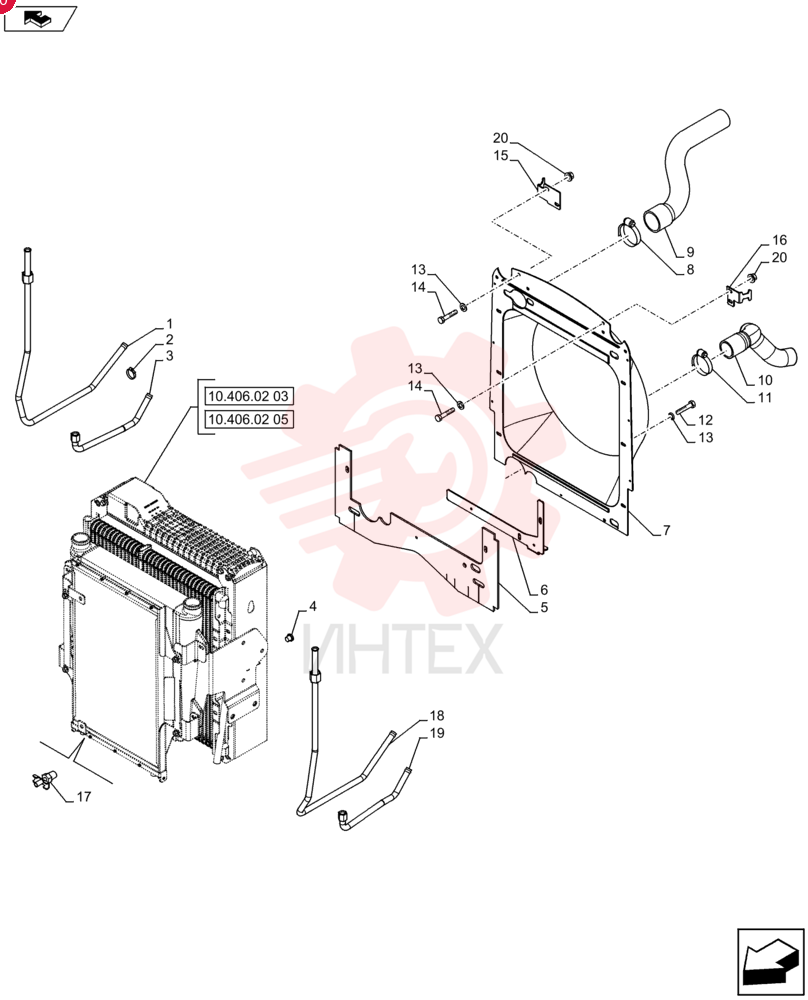

TUBE 84485235 (2)

TUBE 84485235 (2)

TUBE 84485235 (2)

1 84485235

  • 84485235 - TUBE

2 86625021

  • 86625021 - HOSE CLAMP
  • 17.5mm - 31.7mm
  • Worm Gear

3 84485233

  • 84485233 - TUBE

4 87301356

  • 87301356 - RIVET
  • Pop
  • 3/16" x .700"

5 84539940

  • 84539940 - SEAL
  • 5mm Thk

6 87446081

  • 87446081 - RETAINING PLATE
  • 195mm x 62mm x 43mm L

7 87559003

  • 87559003 - SHROUD

8 45014

  • 45014 - HOSE CLAMP
  • 2.06" - 3"
  • Worm

9 87528978

  • 87528978 - RADIATOR HOSE
  • 45.00 mm ID x 76.50 mm
  • SAE J20
  • SAE 20 R4 Class C

10 87407272

  • 87407272 - HOSE
  • 57.00 mm ID x 217.70 mm
  • SAE J20
  • SAE J20R4 CLASS C

11 87647029

  • 87647029 - HOSE CLAMP
  • 40-64mm

12 86625007

  • 86625007 - BOLT
  • Hex
  • M8 x 1.25 x 16mm
  • Cl 10.9
  • Full Thd

13 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk

14 300381

  • 300381 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

15 87548813

  • 87548813 - BRACKET

16 87548814

  • 87548814 - BRACKET

17 87301325

  • 87301325 - FITTING
  • 5/16" Hose X 1/4" NPTF Beaded

18 84485237

  • 84485237 - TUBE

19 84485239

  • 84485239 - TUBE

20 412250

  • 412250 - NUT
  • M8 x 1.25
  • Cl 8
