New Holland Construction
/

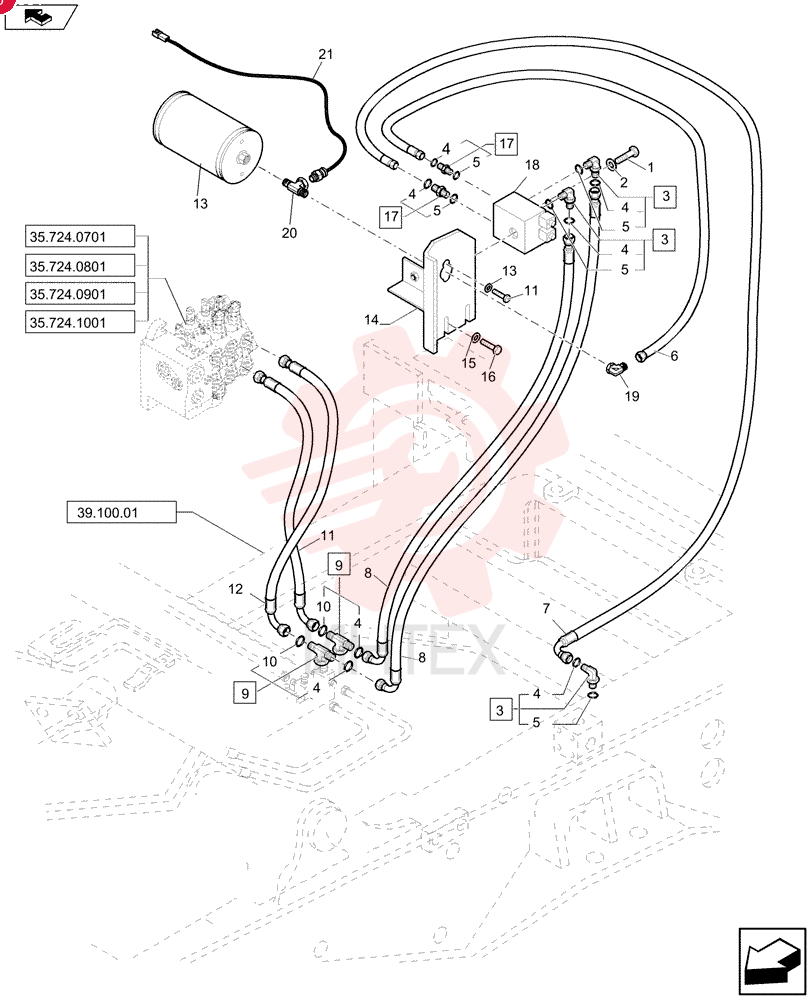

(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/
SCREW,Hex, M10 x 1.25 x 75mm, Cl 8.8 15971321 (2)

SCREW,Hex, M10 x 1.25 x 75mm, Cl 8.8 15971321 (2)

SCREW,Hex, M10 x 1.25 x 75mm, Cl 8.8 15971321 (2)

1 15971321

  • 15971321 - SCREW
  • Hex
  • M10 x 1.25 x 75mm
  • Cl 8.8

2 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

3 83971549

  • 83971549 - 90 ELBOW
  • 13/16"-16 ORFS x 3/4"-16 ORB

4 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

5 80128825

  • 80128825 - O-RING
  • 0.087" Thk x 0.644" ID
  • -908
  • Cl 6
  • 90 Duro

6 87386551

  • 87386551 - PIPE

7 85815620

  • 85815620 - FLEXIBLE HOSE
  • 9.53mm ID x 1200mm L

8 87358815

  • 87358815 - FLEXIBLE HOSE
  • 9.5mm ID x 1090mm L

9 85815583

  • 85815583 - TEE
  • 1-14 ORS x 13/16-16 ORS x 1-14 SAE

10 83901443

  • 83901443 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

11 87638572

  • 87638572 - FLEXIBLE HOSE
  • 12.7mm ID x 570mm L

12 87638573

  • 87638573 - FLEXIBLE HOSE
  • 12.7mm ID x 620mm L

13 87358818

  • 87358818 - ACCUMULATOR
  • 2L

14 47425291

  • 47425291 - ACCUMULATOR
  • 2L

15 87358808

  • 87358808 - BRACKET

16 11190679

  • 11190679 - BELLEVILLE WASHER
  • M10 Bolt Size x 27mm OD x 2.5mm Thk

17 11106421

  • 11106421 - SCREW
  • Hex
  • M10 x 1.5 x 30mm
  • Cl 8.8

18 83963374

  • 83963374 - FITTING
  • 13/16"-16 ORFS x 3/4"-16 ORB

19 87358817

  • 87358817 - HYDRAULIC VALVE

20 84488519

  • 84488519 - 90 ELBOW

21 84480441

  • 84480441 - BRANCH TEE
  • 13/16"-16 ORFS

22 84565385

  • 84565385 - PRESSURE SWITCH
