New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

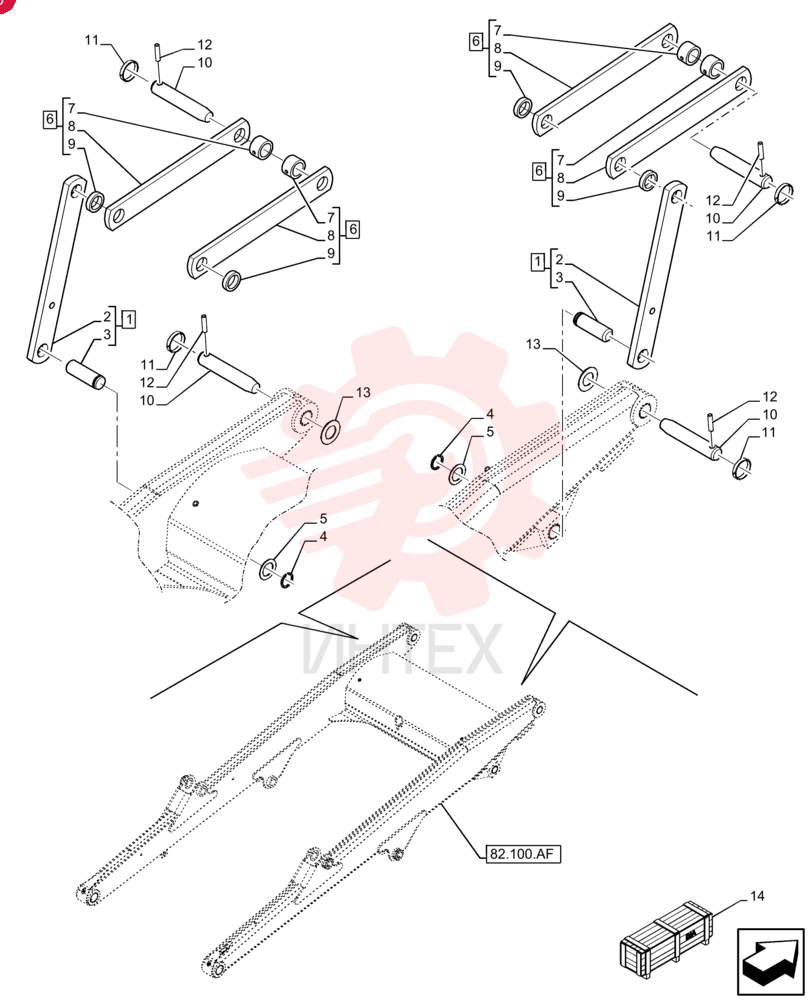

LINK 85801052

LINK 85801052

LINK 85801052

1 85801052

  • 85801052 - LINK

2 NSS

  • NSS - NOT SOLD SEPARAT

3 85801056

  • 85801056 - PIN
  • 38.1mm OD x 117mm L

4 81902463

  • 81902463 - RING
  • 35.306mm ID x 2.769mm Thk

5 81900328

  • 81900328 - WASHER
  • 38.48mm ID x 57.15mm OD x 2.9mm Thk

6 85801057

  • 85801057 - LINK

7 85801058

  • 85801058 -

8 NSS

  • NSS - NOT SOLD SEPARAT

9 85801080

  • 85801080 -

10 85801051

  • 85801051 - PIN
  • 38.1mm OD x 205mm L

11 85802992

  • 85802992 - RING
  • 54mm ID x 59mm OD x 10mm Thk

12 85802993

  • 85802993 - PIN
  • 12mm OD x 55mm L

13 85828254

  • 85828254 - SHIM
  • 39mm ID x 70mm OD x 2.5mm Thk

14 718551019

  • 718551019 - DIA KIT
  • ADD PROD

15 718552019

  • 718552019 - DIA KIT
  • ADD PROD

16 718550019

  • 718550019 - DIA KIT
  • ADD PROD

17 741427019

  • 741427019 - DIA KIT
  • MHEX

18 741472049

  • 741472049 - DIA KIT
  • TLB

19 741474049

  • 741474049 - DIA KIT
  • TLB
