(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

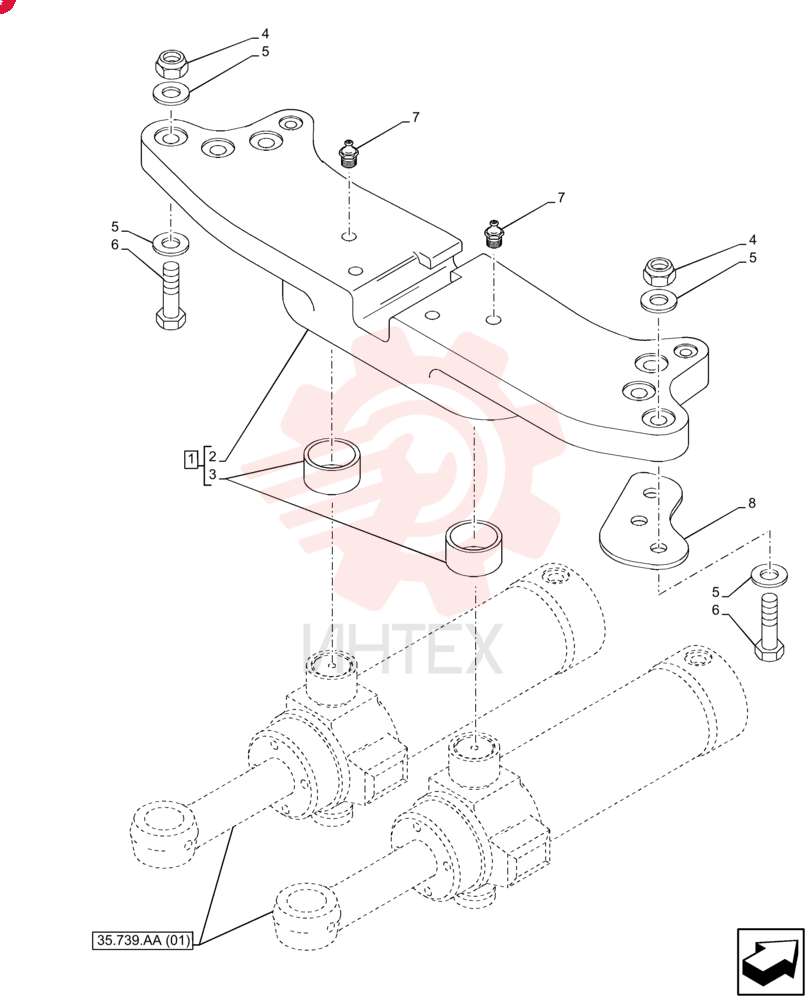

RETAINING PLATE,Yellow 85803617

RETAINING PLATE,Yellow 85803617

RETAINING PLATE,Yellow 85803617

1 85803617

  • 85803617 - RETAINING PLATE
  • Yellow

2 NSS

  • NSS - NOT SOLD SEPARAT

3 83910645

  • 83910645 - BUSHING
  • 70.35mm ID x 80.18mm OD x 32mm L

4 12575121

  • 12575121 - NUT
  • M20 x 1.5
  • Cl 10

5 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

6 15988934

  • 15988934 - BOLT
  • Hex
  • M20 x 1.5 x 90mm
  • Cl 10.9

7 81818824

  • 81818824 - LUBE NIPPLE
  • 90 Degree
  • 1/8"-27 NPT

8 85801153

  • 85801153 - SHIM
  • 1mm Thk

9 85803039

  • 85803039 - SHIM
  • 2mm Thk
