New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

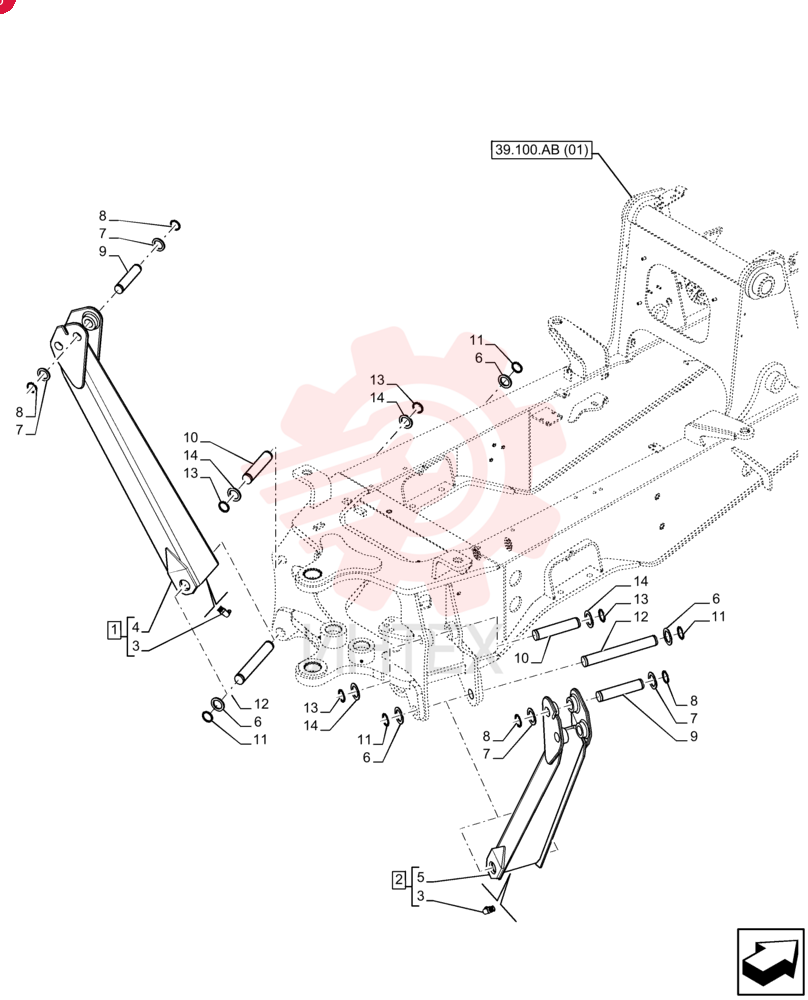

STABILIZER 85801253

STABILIZER 85801253

STABILIZER 85801253

1 85801253

  • 85801253 - STABILIZER

2 85801261

  • 85801261 - STABILIZER

3 81818824

  • 81818824 - LUBE NIPPLE
  • 90 Degree
  • 1/8"-27 NPT

4 NSS

  • NSS - NOT SOLD SEPARAT

5 NSS

  • NSS - NOT SOLD SEPARAT

6 81901837

  • 81901837 - WASHER
  • 2.02" ID x 3" OD x 0.12" Thk

7 83910629

  • 83910629 - SPACER
  • 40.8mm ID x 61.5mm OD x 3.5mm Thk

8 83910630

  • 83910630 - RING
  • 36.75
  • 37.10mm ID x 2.72
  • 2.88mm Thk

9 83999466

  • 83999466 - PIN
  • 40mm OD x 164mm L

10 85801262

  • 85801262 - PIN
  • 45mm OD x 215mm L

11 83911020

  • 83911020 - SNAP RING
  • 46mm ID
  • Ext

12 83911000

  • 83911000 - PIN
  • 50mm OD x 348mm L

13 83911019

  • 83911019 - SNAP RING
  • M45 x 2.88mm Thk
  • Int

14 83910977

  • 83910977 - SPACER
  • 45.37mm ID x 66.5mm OD x 3.5mm L
