New Holland Construction
/
(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

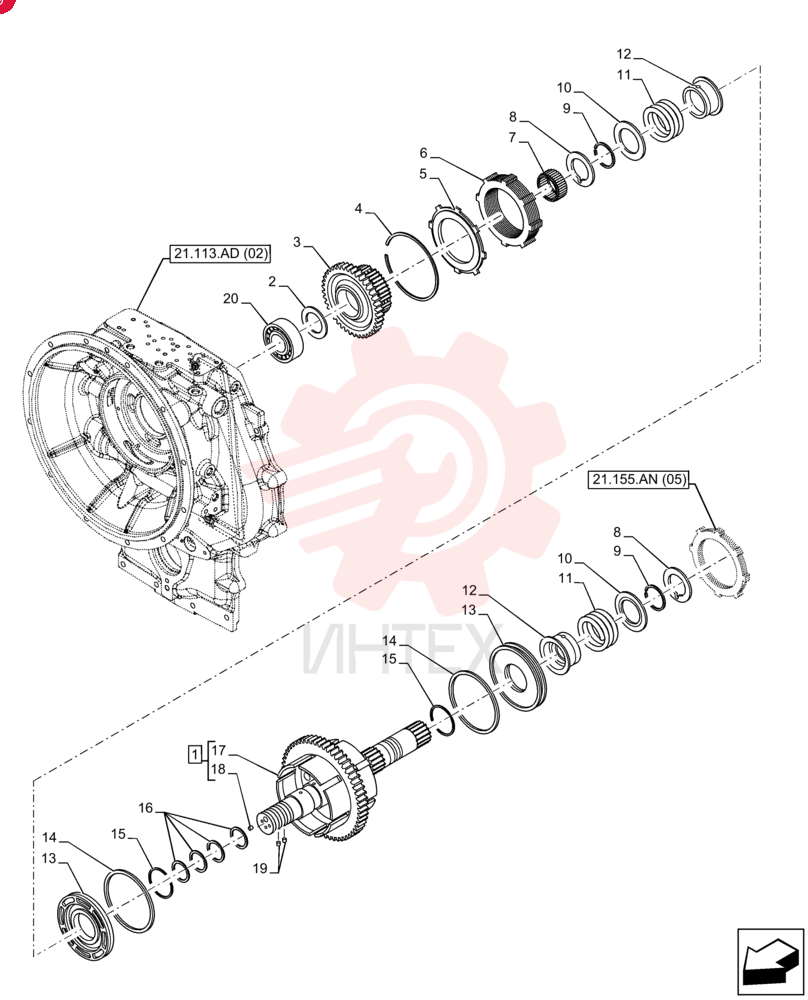

SHAFT 84326215

SHAFT 84326215

SHAFT 84326215

1 84326215

  • 84326215 - SHAFT

2 358639A1

  • 358639A1 - WASHER

3 87705470

  • 87705470 - GEAR
  • 44T

4 181116A1

  • 181116A1 - RING
  • LOCKING
  • 146.6mm ID x 2.5mm Thk

5 310519A1

  • 310519A1 - PLATE

6 87705465

  • 87705465 - CLUTCH OVERHAUL KIT

7 358633A1

  • 358633A1 - BEARING
  • NEEDLE
  • 50mm ID x 58mm OD x 25mm W

8 358640A1

  • 358640A1 - WASHER

9 181111A1

  • 181111A1 - RING
  • LOCKING
  • 47.8mm ID x 1.5mm Thk

10 181161A1

  • 181161A1 - PLATE
  • THRUST

11 358637A1

  • 358637A1 - SPRING

12 358641A1

  • 358641A1 - TRANSMISSION SLEEVE

13 358644A1

  • 358644A1 - PISTON

14 358643A1

  • 358643A1 - SEALING RING
  • 126.83mm ID x 137mm OD x 3.25mm Thk

15 358642A1

  • 358642A1 - SEALING RING

16 358645A1

  • 358645A1 - SEALING RING

17 NSS

  • NSS - NOT SOLD SEPARAT

18 87701779

  • 87701779 - RIVET
  • 7mm OD

19 181108A1

  • 181108A1 - SPLIT PIN
  • 3mm OD x 8mm L

20 181126A1

  • 181126A1 - BEARING
  • BALL
  • 45 mm ID x 85 mm OD x 19 mm
