(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

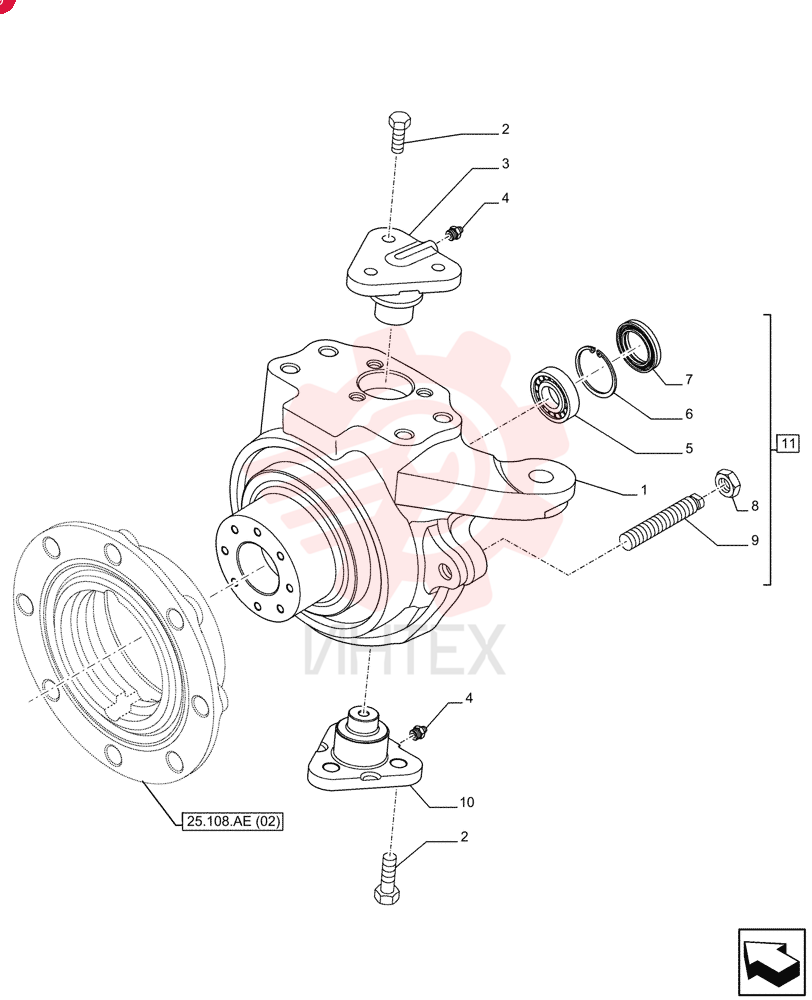

STEERING KNUCKLE 84259616 (1)

STEERING KNUCKLE 84259616 (1)

STEERING KNUCKLE 84259616 (1)

1 84259616

  • 84259616 - STEERING KNUCKLE

2 84259618

  • 84259618 - STEERING KNUCKLE

3 84273740

  • 84273740 - BOLT
  • Hex
  • M14 x 35mm
  • Cl 10.9

4 84259754

  • 84259754 - PIN
  • 49.9mm OD x 48mm L

5 84351730

  • 84351730 - FITTING
  • M10 x 1

6 84262394

  • 84262394 - BALL BEARING
  • 45mm ID x 75mm OD x 16mm W

7 84270868

  • 84270868 - CIRCLIP
  • 75 PHC

8 84264324

  • 84264324 - SEAL
  • 53.2mm ID x 78mm OD x 14mm Thk

9 47361877

  • 47361877 - NUT
  • Hex
  • Thin
  • M18 x 2.5
  • Cl. 5

10 87751873

  • 87751873 - SCREW
  • M18 x 105mm
  • Cl 10.9

11 84259753

  • 84259753 - PIN
  • 49.9mm OD x 45mm L

12 84263613

  • 84263613 - STEERING KNUCKLE
  • LH

13 84263614

  • 84263614 - STEERING KNUCKLE
  • RH
