(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

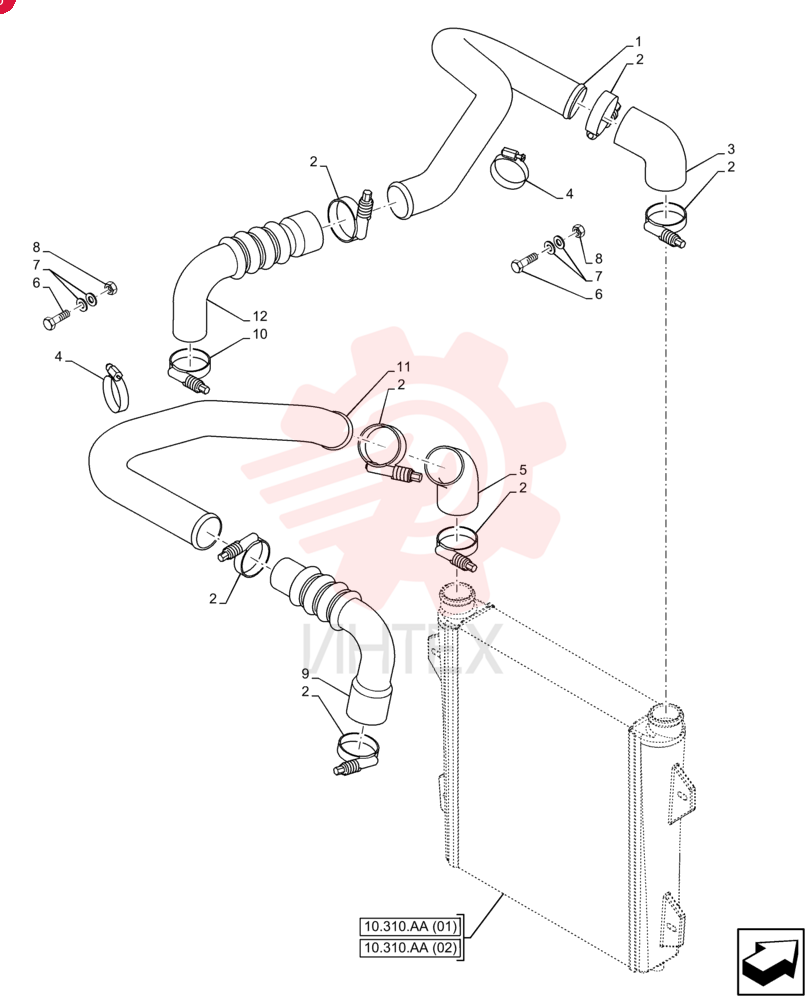

TUBE 84329351

TUBE 84329351

TUBE 84329351

1 84329351

  • 84329351 - TUBE

2 254026A1

  • 254026A1 - HOSE CLAMP
  • 44.45mm - 66.67mm

3 47373649

  • 47373649 - ELBOW
  • 50.8mm ID x 121mm L

4 87647029

  • 87647029 - HOSE CLAMP
  • 40-64mm

5 47373646

  • 47373646 - ELBOW
  • 50.8mm ID x 121mm L

6 614-8025

  • 614-8025 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

7 87655042

  • 87655042 - SPECIAL WASHER
  • 8.8mm ID x 17.5mm OD x 2.2mm Thk

8 832-10408

  • 832-10408 - NUT
  • M8 x 1.25
  • Cl 8.8

9 84329353

  • 84329353 - AIR HOSE
  • 55mm ID x 221.86mm L
  • Rubber

10 353036A1

  • 353036A1 - HOSE CLAMP
  • 32mm - 54mm

11 84329350

  • 84329350 - TUBE

12 84329352

  • 84329352 - AIR HOSE
  • 40.5mm ID x 207.74mm L
  • Rubber
