(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4A (3/12-)
/

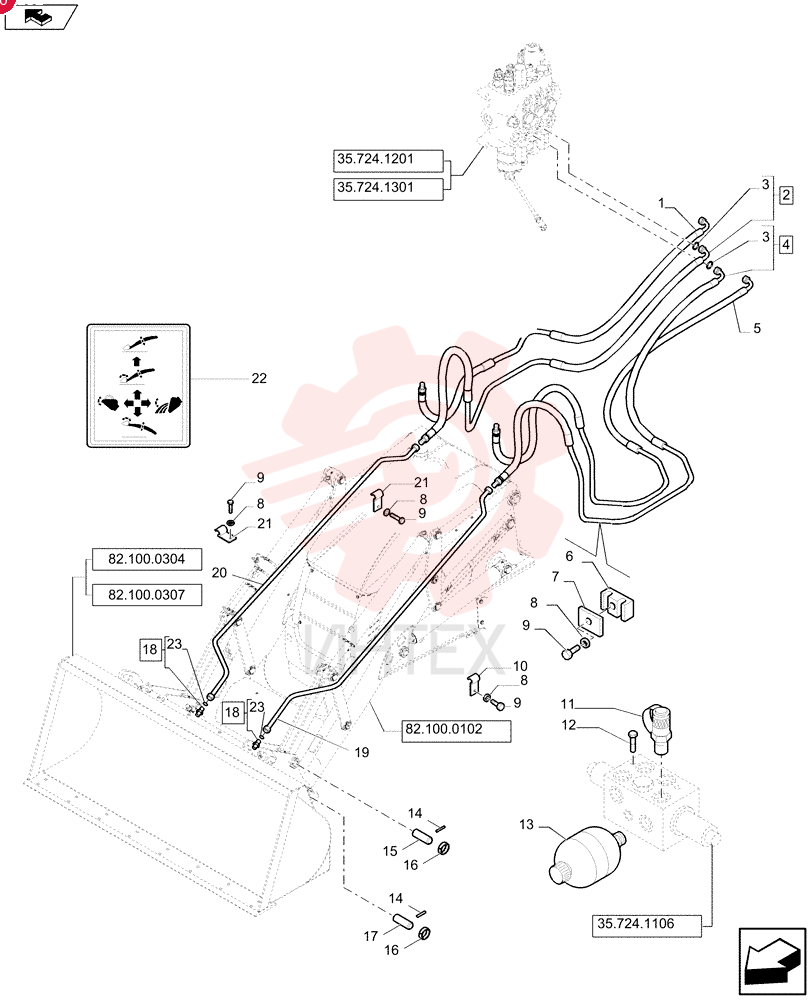

TUBE,12.2 mm ID x 16.2 mm OD x 801, 420.9 mm L 87536581 (1)

TUBE,12.2 mm ID x 16.2 mm OD x 801, 420.9 mm L 87536581 (1)

TUBE,12.2 mm ID x 16.2 mm OD x 801, 420.9 mm L 87536581 (1)

1 87536581

  • 87536581 - TUBE
  • 12.2 mm ID x 16.2 mm OD x 801
  • 420.9 mm L

2 85819572

  • 85819572 - HYD TUBE

3 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro

4 85819571

  • 85819571 - HYD TUBE

5 87536580

  • 87536580 - TUBE
  • 12.2 mm ID x 16.2 mm OD

6 85805193

  • 85805193 - CLAMP
  • 12mm ID

7 85805195

  • 85805195 - PLATE

8 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

9 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

10 85805247

  • 85805247 - CLAMP
  • 12.5mm ID
  • 9mm Bolt Hole
  • J Type

11 87566842

  • 87566842 - COUPLING
  • QUICK
  • FEM
  • 3/4" Male

12 14300521

  • 14300521 - HEX SOC SCREW
  • M6 x 75mm
  • Cl 8.8

13 87425225

  • 87425225 - ACCUMULATOR
  • 0.16L

14 85804534

  • 85804534 - ROLL PIN
  • 12mm OD x 64.5mm L

15 85805306

  • 85805306 - PIN
  • 45mm OD x 204.5mm L

16 85802974

  • 85802974 - RING
  • 64mm ID x 69mm OD x 10mm Thk

17 85804533

  • 85804533 - PIN
  • 45mm OD x 204.5mm L

18 85803408

  • 85803408 - PLUG
  • 13/16" - 16 ORFS

19 87536582

  • 87536582 - TUBE
  • 11.16 mm ID x 1927.04
  • 270.5 mm L

20 87536583

  • 87536583 - TUBE
  • 1913.08
  • 261.18 mm L

21 87536183

  • 87536183 - PIPE CLAMP

22 85804346

  • 85804346 - DECAL

23 89992298

  • 89992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
