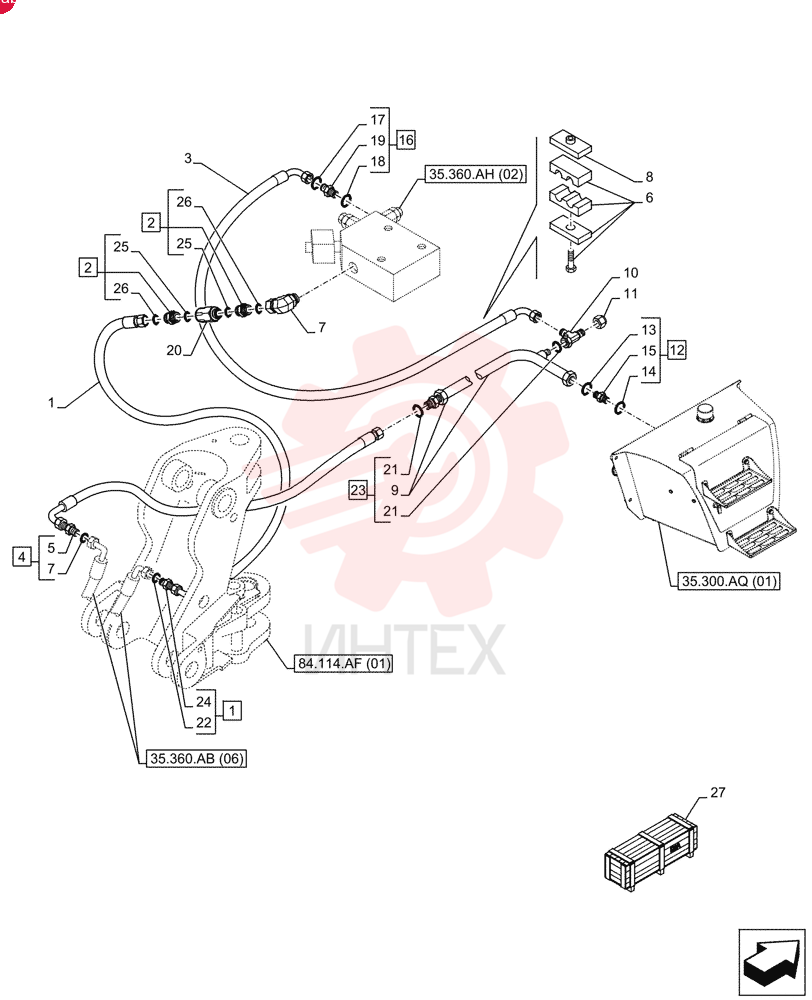

HYDRAULIC HOSE,19mm ID x 1450mm L
1 47911652
- 47911652 - HYDRAULIC HOSE
- 19mm ID x 1450mm L
2 87303844
- 87303844 - HYD CONNECTOR
- 1-7/16" - 12 ORFS x 1-1/16" - 12 ORB
3 85817633
- 85817633 - HYDRAULIC HOSE
- 6.35mm ID x 2050mm L
4 85817635
- 85817635 - HYDRAULIC HOSE
- 19mm ID x 1400mm L
5 NSS
- NSS - NOT SOLD SEPARAT
6 87390530
- 87390530 - CLAMP
7 84262694
- 84262694 - 90 ELBOW
- 1-7/16"-12 ORFS x 1-1/16"-12 ORB
8 87390531
- 87390531 - PLATE
9 NSS
- NSS - NOT SOLD SEPARAT
10 85807876
- 85807876 - TEE
- 1-14 ORS x 11/16-16 ORS x 1-14 SAE
11 83987627
- 83987627 - CAP
- 1-14UN-2A
12 85802801
- 85802801 - HYD CONNECTOR
- 1-11/16-12 ORFS x 1-5/16-12 ORB
13 167268
- 167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
14 9824051
- 9824051 - O-RING
- 0.07" Thk x 1.176" ID
- -25
- Cl 6
- 90 Duro
15 NSS
- NSS - NOT SOLD SEPARAT
16 9993143
- 9993143 - HYD CONNECTOR
- 11/16" - 16 ORFS x 9/16" - 18 ORB
17 9617873
- 9617873 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
18 9993141
- 9993141 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
19 NSS
- NSS - NOT SOLD SEPARAT
20 85802372
- 85802372 - CHECK VALVE
21 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
22 9991976
- 9991976 - O-RING
- 0.07" Thk x 0.739" ID
- -18
- Cl 6
- 90 Duro
23 47553114
- 47553114 - HYD TUBE
24 NSS
- NSS - NOT SOLD SEPARAT
25 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
26 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
27 718724139
- 718724139 - CONSTRUCTION DIA
