(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/

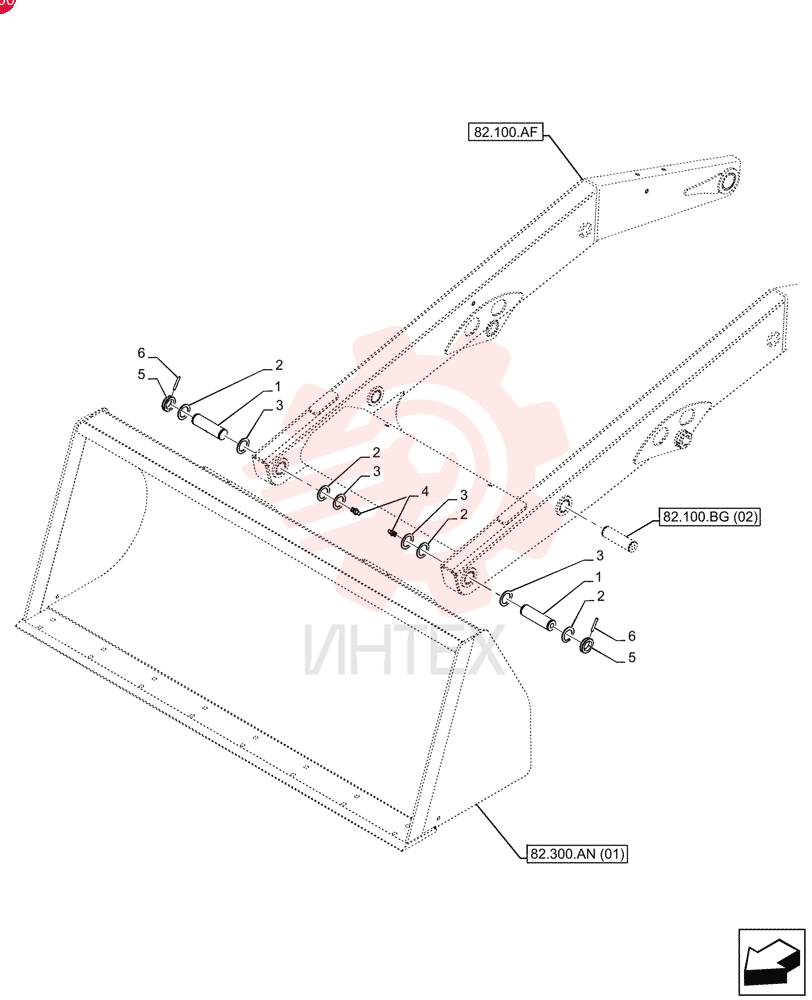

PIN,45mm OD x 204.5mm L

PIN,45mm OD x 204.5mm L

PIN,45mm OD x 204.5mm L

1 85804533

  • 85804533 - PIN
  • 45mm OD x 204.5mm L

2 85818916

  • 85818916 - SHIM
  • 46mm ID x 70mm OD x 1mm Thk

3 85828253

  • 85828253 - SHIM
  • 46mm ID x 80mm OD x 2.5mm Thk

4 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

5 85802974

  • 85802974 - RING
  • 64mm ID x 69mm OD x 10mm Thk

6 85804534

  • 85804534 - ROLL PIN
  • 12mm OD x 64.5mm L
