New Holland Construction
/
(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/

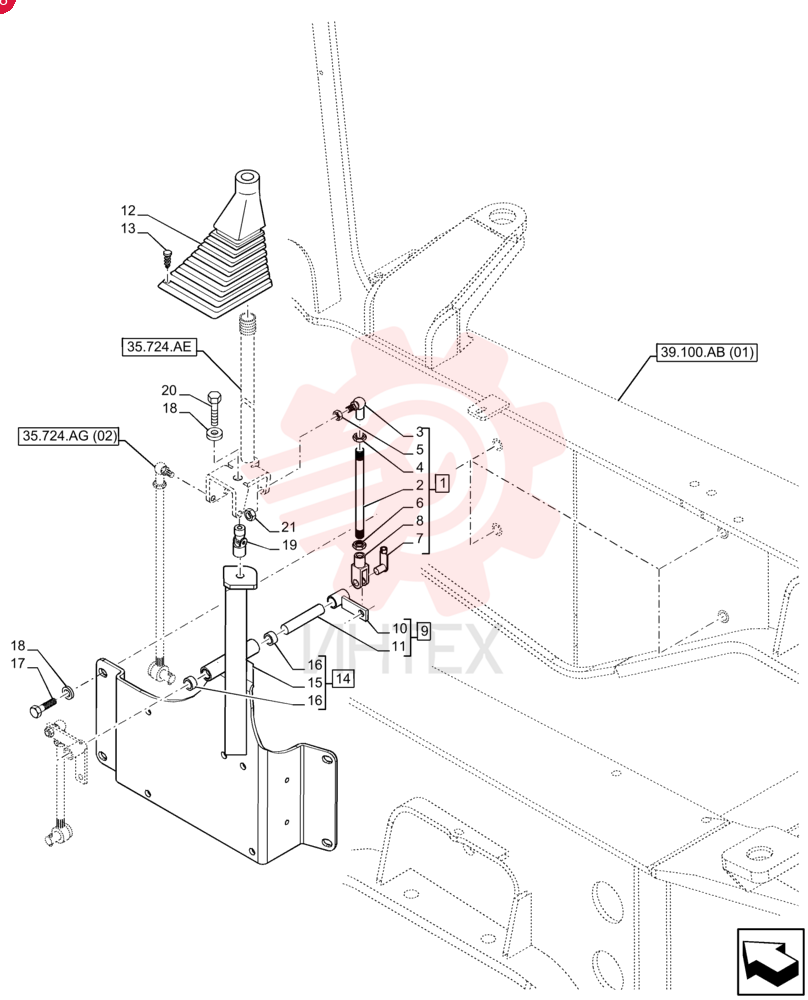

TIE-ROD,M8 x 221.5mm L

TIE-ROD,M8 x 221.5mm L

TIE-ROD,M8 x 221.5mm L

1 85801562

  • 85801562 - TIE-ROD
  • M8 x 221.5mm L

2 NSS

  • NSS - NOT SOLD SEPARAT

3 85804375

  • 85804375 - BALL JOINT
  • M8

4 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

5 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

6 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

7 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

8 11991971

  • 11991971 - CLEVIS
  • M8

9 85805692

  • 85805692 - PIN
  • 16mm OD x 169.5mm L

10 NSS

  • NSS - NOT SOLD SEPARAT

11 85801571

  • 85801571 -

12 85802842

  • 85802842 - BOOT

13 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

14 84176889

  • 84176889 - BRACKET

15 NSS

  • NSS - NOT SOLD SEPARAT

16 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

17 86629541

  • 86629541 - BOLT
  • Hex
  • M12 x 1.75 x 40mm
  • Cl 8.8

18 11190779

  • 11190779 - BELLEVILLE WASHER
  • M12 Bolt Size x 24mm OD x 2.8mm Thk

19 85801518

  • 85801518 - UNIVERSAL JOINT
  • M12x1.25 Female x2
  • 56mm L

20 15540321

  • 15540321 - SCREW
  • Hex
  • M12 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

21 87597953

  • 87597953 - NUT
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 8
  • ZND
