New Holland Construction
/

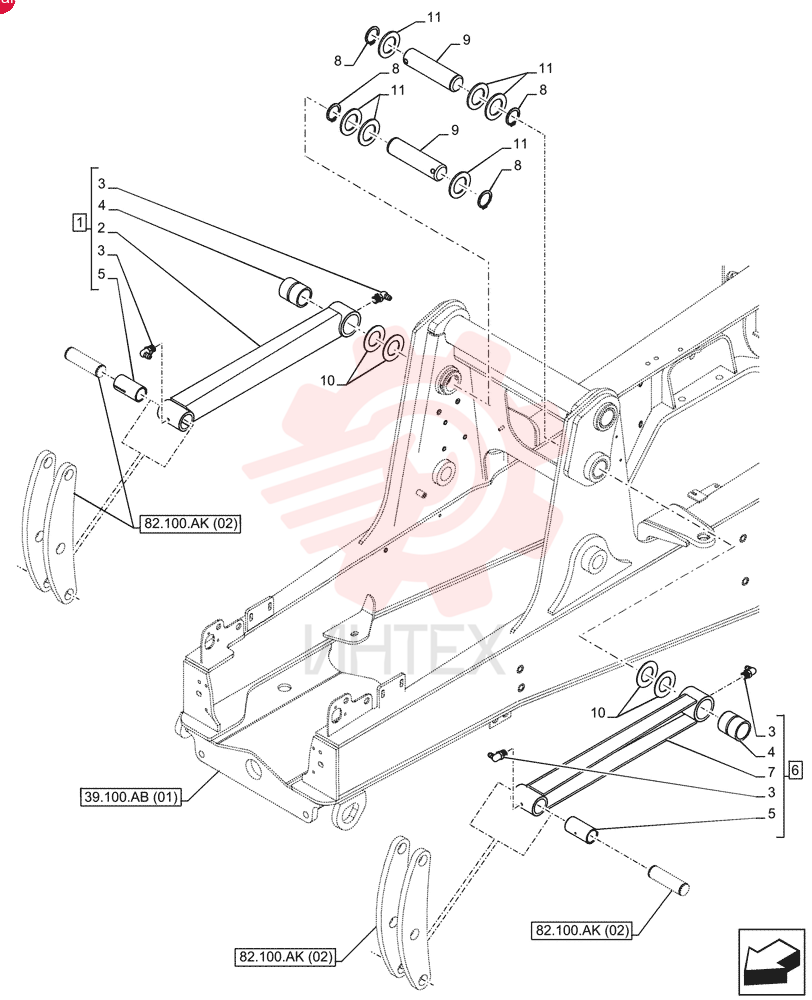

(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/
LINK 87645120

LINK 87645120

LINK 87645120

1 87645120

  • 87645120 - LINK

2 NSS

  • NSS - NOT SOLD SEPARAT

3 83416242

  • 83416242 - LUBE NIPPLE
  • Straight
  • 1/8"-27 x 0.66"

4 85804468

  • 85804468 - BUSHING
  • 60.15mm ID x 73.98mm OD x 94.5mm L

5 85804475

  • 85804475 - BUSHING
  • 45.23mm ID x 54.98mm OD x 104.5mm L

6 87645122

  • 87645122 - LINK

7 NSS

  • NSS - NOT SOLD SEPARAT

8 11069874

  • 11069874 - SNAP RING
  • M60
  • Ext

9 47716246

  • 47716246 - PIN

10 1266772

  • 1266772 - WASHER
  • 1mm Thk

11 87401079

  • 87401079 - WASHER
  • 61mm ID x 85mm OD x 3.5 Thk
