New Holland Construction
/
(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/

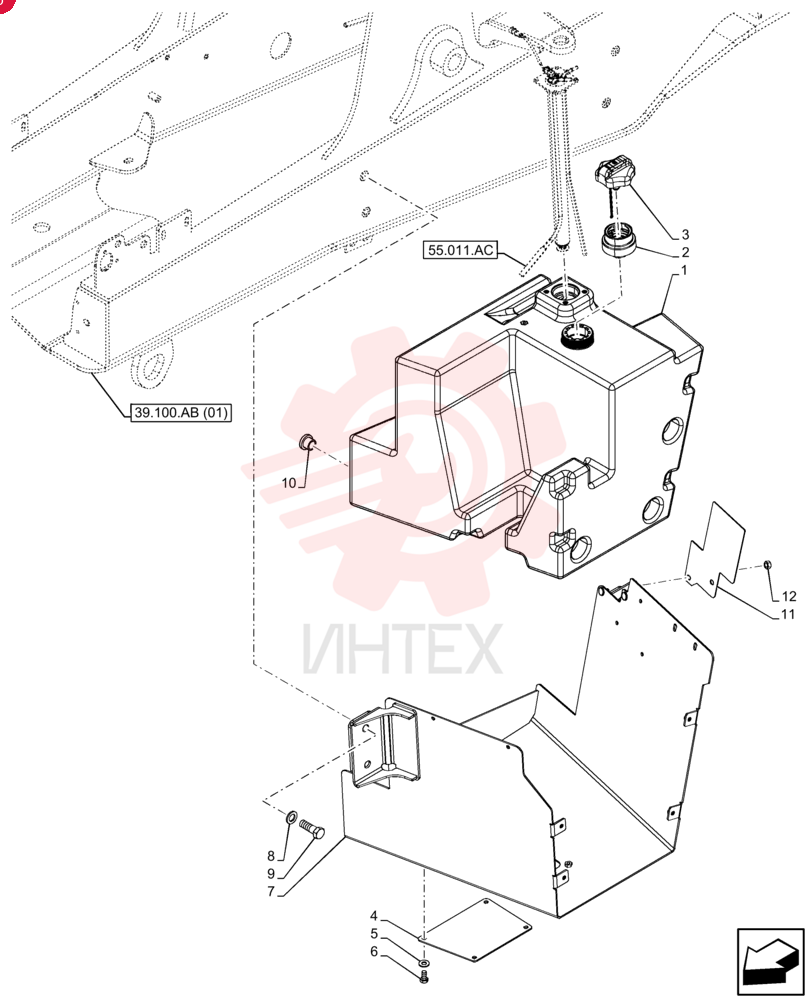

TANK,135 Liters / 35.50 US Gallons

TANK,135 Liters / 35.50 US Gallons

TANK,135 Liters / 35.50 US Gallons

1 47474115

  • 47474115 - TANK
  • 135 Liters / 35.50 US Gallons

2 47569561

  • 47569561 - NECK FILLER

3 47569563

  • 47569563 - FILLER CAP
  • Male
  • Vented

4 47474126

  • 47474126 - PLATE

5 86625253

  • 86625253 - WASHER
  • 11mm ID x 24mm OD x 2mm Thk

6 43138

  • 43138 - BOLT
  • Hex
  • M10 x 1.5 x 20mm
  • Cl 8.8

7 47473668

  • 47473668 - WRAPPER

8 86625260

  • 86625260 - WASHER
  • 21.8mm ID x 37.5mm OD x 4mm Thk

9 374890

  • 374890 - BOLT
  • Hex
  • M20 x 2.5 x 60mm
  • Cl 8.8
  • Full Thd

10 84485414

  • 84485414 - DRAIN PLUG
  • M24 x 1.5

11 47474130

  • 47474130 - PLATE

12 86500689

  • 86500689 - NUT
  • M10 x 1.5
  • Cl 10
