(C227) - COMPACT TRACK LOADER (4/11-)
/

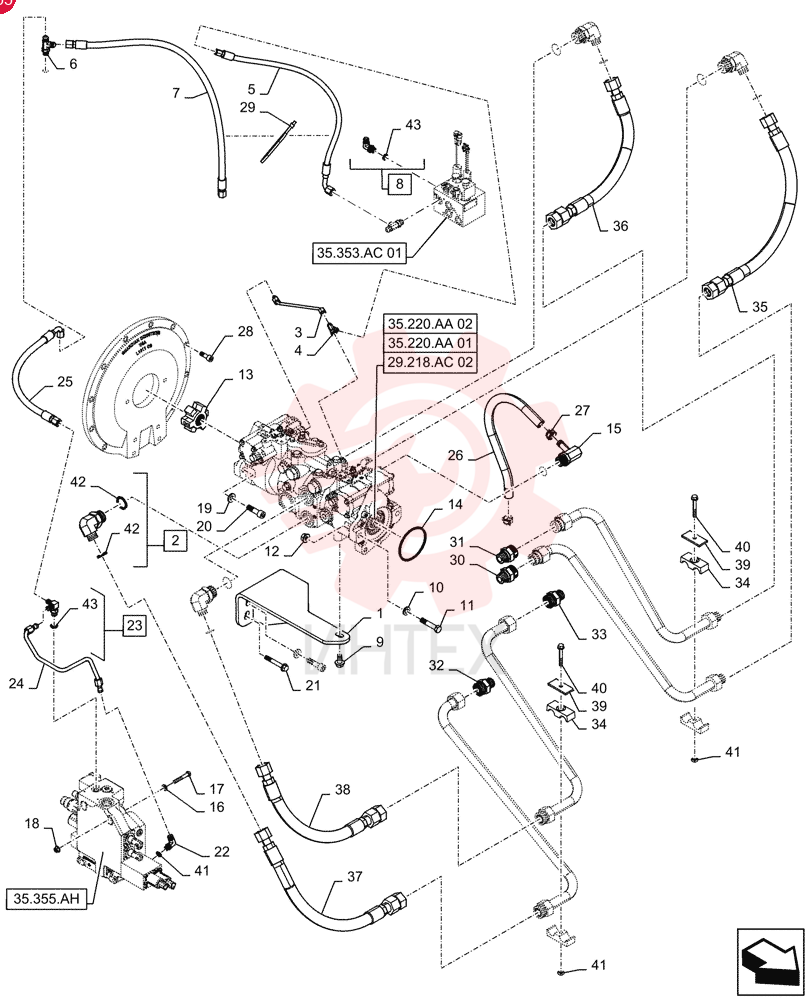

MOUNT 84560744

MOUNT 84560744

MOUNT 84560744

1 84560744

  • 84560744 - MOUNT
  • Pump Support
  • Gray

2 87326965

  • 87326965 - 90 ELBOW
  • 1-3/16" - 12 ORFS x 1-5/16" - 12 ORB
  • Incl 42

3 87021277

  • 87021277 - TUBE
  • 6.35mm OD x 124.9mm L
  • 37 Degree Flare

4 86513653

  • 86513653 - TEE
  • 7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

5 84257175

  • 84257175 - HOSE ASSY.
  • 6.35mm ID x 650mm L
  • SAE 100R17

6 86513020

  • 86513020 - TEE
  • 9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

7 76350

  • 76350 - HYD CONNECTOR
  • 9/16" - 18 ORB x 9/16" - 18 JIC
  • Start Year: 03-OCT-16

8 84257174

  • 84257174 - HOSE ASSY.
  • 9.53mm ID x 765mm L
  • SAE 100R17

9 76344

  • 76344 - 90 ELBOW
  • 9/16" - 18 JIC x 9/16" - 18 ORB
  • Incl 43

10 87698844

  • 87698844 - BOLT
  • Hex
  • M12 x 1.75 x 20mm
  • Full Thd
  • Cl 10.9

11 86625255

  • 86625255 - WASHER
  • 13.3mm ID x 24.5mm OD x 3mm Thk

12 9706693

  • 9706693 - BOLT
  • M12 x 60mm
  • Cl 8.8

13 9804279

  • 9804279 - FLANGE NUT
  • Hex
  • M12
  • Cl 8

14 87711337

  • 87711337 - COUPLING
  • 19T
  • 1-1/8" ID

15 87013729

  • 87013729 - O-RING
  • 0.07" Thk x 3.739" ID
  • -44
  • Cl 5
  • 75 Duro

16 84273629

  • 84273629 - FITTING
  • 1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

17 87655042

  • 87655042 - SPECIAL WASHER
  • 8.8mm ID x 17.5mm OD x 2.2mm Thk

18 16044321

  • 16044321 - BOLT
  • M8 x 1.25 x 55mm
  • Cl 8.8

19 9804277

  • 9804277 - FLANGE NUT
  • Hex
  • M8 x 1.25
  • Cl 8

20 65319

  • 65319 - WASHER
  • 13.1mm ID x 25.4mm OD x 3.68mm Thk

21 15734

  • 15734 - SCREW
  • Hex Socket
  • 1/2" - 13 x 1-3/4"

22 86011090

  • 86011090 - BOLT
  • Hex Flng
  • M10 x 70mm
  • Cl 8.8

23 86512936

  • 86512936 - ELBOW
  • 9/16" - 18 JIC x 7/16" - 20 ORB

24 L104616

  • L104616 - TEE
  • 9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB
  • Incl 43

25 84373389

  • 84373389 - RIGID TUBE
  • 9.53mm OD

26 84259516

  • 84259516 - FLEXIBLE HOSE
  • 9.53mm ID x 482.3mm L
  • SAE 100R17

27 47919061

  • 47919061 - HOSE
  • 16mm ID x 535mm L
  • Hydraulic Drain

28 84549542

  • 84549542 - CLAMP
  • 20.5mm - 24mm
  • Hose

29 300442

  • 300442 - HEX SOC SCREW
  • M10 x 30mm
  • Cl 8.8

30 L18331

  • L18331 - CABLE TIE
  • 375.9mm L
  • Nylon

31 47889297

  • 47889297 - HYD TUBE
  • RH
  • Drive Motor
  • Rear

32 47889299

  • 47889299 - HYD TUBE
  • RH
  • Drive Motor
  • Front

33 47889336

  • 47889336 - HYD TUBE
  • LH
  • Drive Motor
  • Rear

34 47889338

  • 47889338 - HYD TUBE
  • LH
  • Drive Motor
  • Front

35 1546028C1

  • 1546028C1 - CLAMP
  • 25.4mm ID x 82mm L

36 47926576

  • 47926576 - HOSE
  • 19mm ID x 600mm L
  • SAE100R19

37 47926577

  • 47926577 - HOSE
  • 19mm ID x 500mm L
  • SAE100R19

38 47926578

  • 47926578 - HOSE
  • 19mm ID x 565mm L
  • SAE100R19

39 47926579

  • 47926579 - HOSE
  • 19mm ID x 475mm L
  • SAE100R19

40 257859A1

  • 257859A1 - PLATE
  • SPACER
  • 31.8mm W x 68mm L x 4.76mm Thk

41 86511843

  • 86511843 - BOLT
  • Hex Flng
  • M8 x 1.25 x 60mm
  • Cl 8.8

42 229197A1

  • 229197A1 - SQUARE NUT
  • M8 x 1.25
  • Cl 8

43 167268

  • 167268 - O-RING
  • 0.116" Thk x 1.171" ID
  • -916
  • Cl 6
  • 90 Duro

44 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
