(C227) - COMPACT TRACK LOADER (4/11-)
/

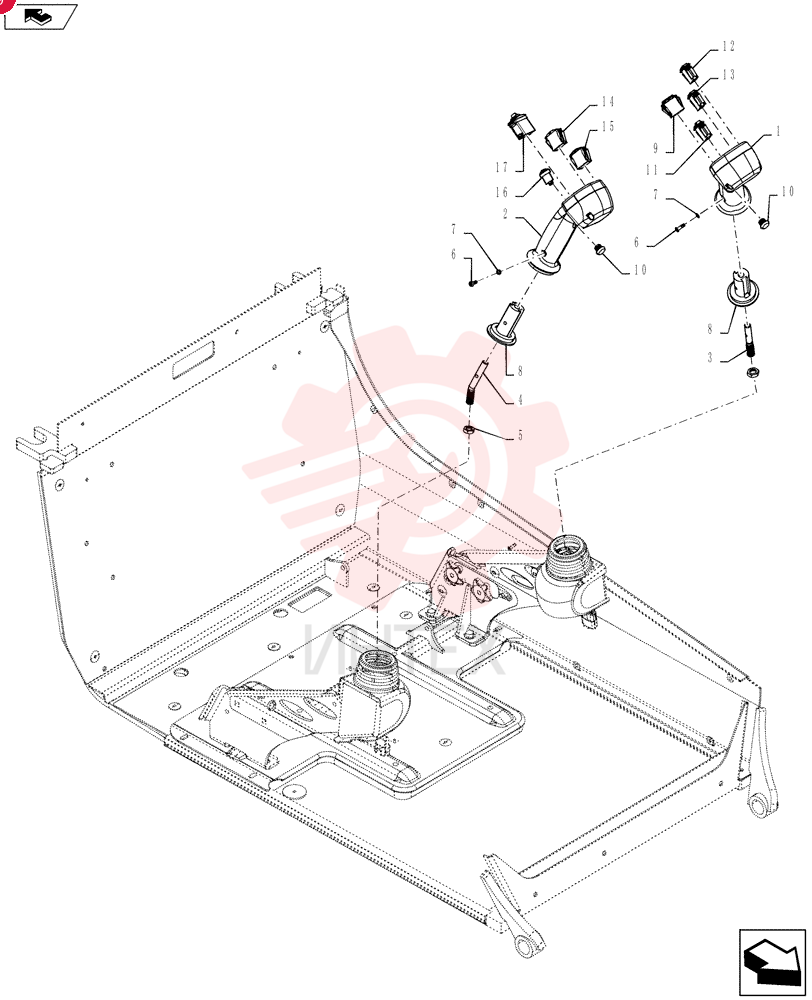

JOYSTICK 84396074 (2)

JOYSTICK 84396074 (2)

JOYSTICK 84396074 (2)

1 84396074

  • 84396074 - JOYSTICK
  • Level 350 LH
  • No 2nd Aux

2 84406762

  • 84406762 - GRIP
  • Level 550 LH

3 84396076

  • 84396076 - GRIP
  • Level 350/550 Common RH

4 87619017

  • 87619017 - ROD
  • Angled

5 87619016

  • 87619016 - ROD
  • Angled

6 323238

  • 323238 - THIN NUT
  • Hex
  • M12
  • 1.75mm Pitch
  • Cl 05

7 87742597

  • 87742597 - HEX SOC SCREW
  • Locking
  • #10 - 32 x 5/8"

8 80684

  • 80684 - LOCK WASHER
  • 4.9mm ID x 8.48mm OD x 1.19mm Thk
  • Spring Lock

9 87527964

  • 87527964 - ADAPTER
  • Handle (Not Shown)

10 87427353

  • 87427353 - SWITCH
  • Turn Signal

11 87427352

  • 87427352 - SWITCH
  • Trigger
  • Horn/Ride Control

12 84328912

  • 84328912 - SWITCH
  • 2-Speed

13 84296547

  • 84296547 - SWITCH
  • Multi-Function 3

14 84296546

  • 84296546 - SWITCH
  • Multi-Function 2

15 84398133

  • 84398133 - SWITCH
  • Rocker
  • Multi-Function 4

16 84296545

  • 84296545 - SWITCH
  • Multi-Function 1

17 84296543

  • 84296543 - SWITCH
  • Float

18 84282677

  • 84282677 - SWITCH
  • Proportional Hydraulics

19 84537211

  • 84537211 - SWITCH
  • Proportional Hydraulics
  • Single Out
  • No Detent
